Center Mounted Brake Lamp: Testing and Inspection

LIGHTING: HIGH MOUNTED STOP LIGHT ASSEMBLY: INSPECTION

INSPECTION

1. INSPECT HIGH MOUNTED STOP LIGHT ASSEMBLY

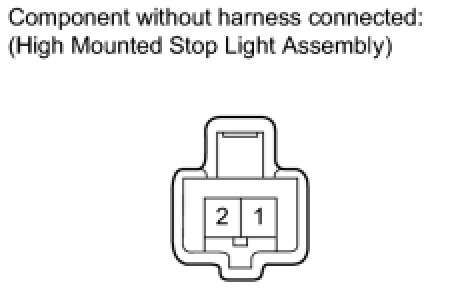

(a) Connect the (+) lead from the battery to terminal 1 and the (-) lead to terminal 2.
(b) Check that the light comes on.
OK:
The light comes on.
If the result is not as specified, replace the high mounted stop light.
