Removal

LIGHTING: BACK DOOR COURTESY SWITCH: REMOVAL

REMOVAL

1. REMOVE BACK DOOR TRIM UPPER PANEL ASSEMBLY Disassembly
2. REMOVE BACK DOOR SIDE GARNISH LH Disassembly
3. REMOVE BACK DOOR SIDE GARNISH RH
HINT: Use the same procedure as for the LH side.

4. REMOVE BACK DOOR INSIDE HANDLE Disassembly
5. REMOVE BACK DOOR TRIM BOARD ASSEMBLY Disassembly

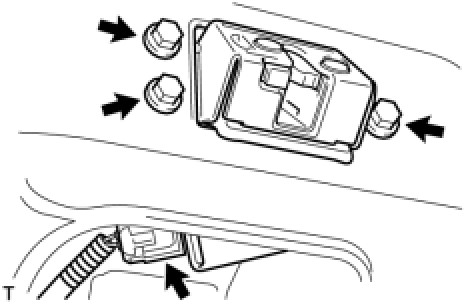

6. REMOVE BACK DOOR LOCK ASSEMBLY
(a) Disconnect the connector.
(b) Remove the 3 bolts and the back door lock.
