Key Reminder Warning System

DOOR LOCK: KEY REMINDER WARNING SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM

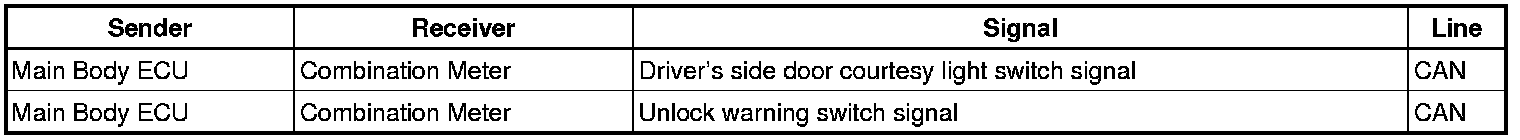

Communication table:





DOOR LOCK: KEY REMINDER WARNING SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. KEY REMINDER WARNING SYSTEM DESCRIPTION
(a) When the driver side door is opened with the ignition key in the ACC or LOCK position, this system causes a buzzer to sound in order to warn the driver that the ignition key has not been removed.

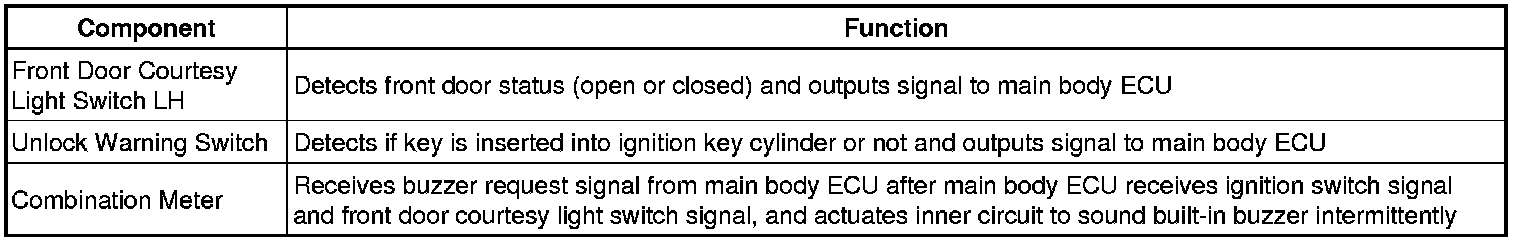

2. FUNCTION OF MAIN COMPONENT
