AIR CONDITIONING: CONDENSER: REMOVAL

REMOVAL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM Service and Repair
2. REMOVE FRONT BUMPER COVER Removal
3. REMOVE UPPER RADIATOR SUPPORT ABSORBER Disassembly
4. REMOVE NO. 1 COOLER COVER Removal
5. SEPARATE HOOD LOCK ASSEMBLY Removal
6. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY Removal





7. DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE

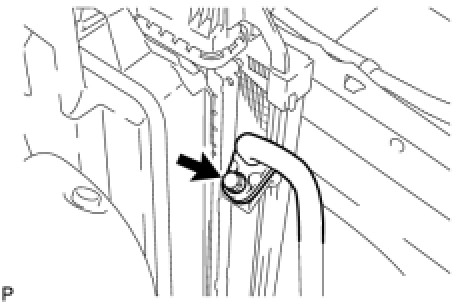

(a) Remove the bolt and disconnect the discharge hose from the cooler condenser.
(b) Remove the O-ring from the discharge hose.
NOTICE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering.

8. DISCONNECT LIQUID TUBE SUB-ASSEMBLY A

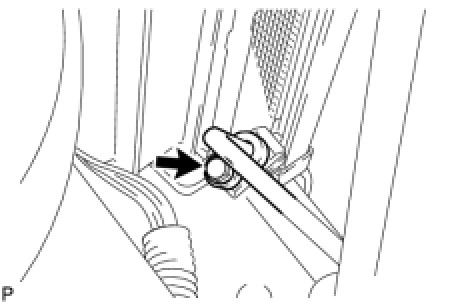

(a) Remove the bolt and disconnect the air conditioning tube from the cooler condenser.
(b) Remove the O-ring from the air conditioning tube.
NOTICE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering.





9. REMOVE COOLER CONDENSER ASSEMBLY

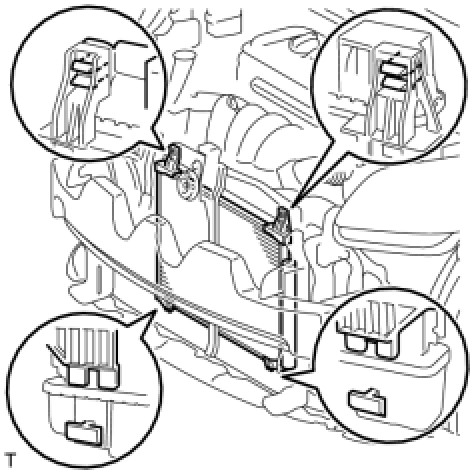

(a) Disengage the 2 claws and remove the cooler condenser from the vehicle.
NOTICE: Do not damage the condenser or radiator when removing the cooler condenser.
