Disassembly

AIR CONDITIONING: CONDENSER: DISASSEMBLY

DISASSEMBLY

1. REMOVE COOLER DRYER

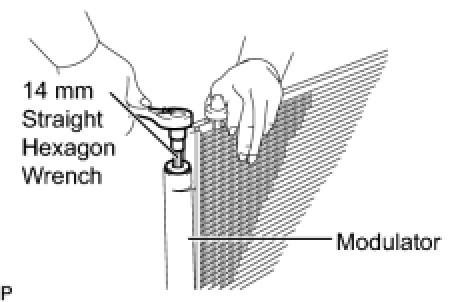

(a) Using a 14 mm straight hexagon wrench, remove the cap from the modulator.





(b) Using pliers, remove the cooler dryer.
