2ZR-FE ENGINE MECHANICAL: FRONT CRANKSHAFT OIL SEAL: REMOVAL

REMOVAL

1. REMOVE ENGINE UNDER COVER RH
2. REMOVE NO. 2 CYLINDER HEAD COVER Removal
3. REMOVE FAN AND GENERATOR V BELT Removal
4. REMOVE CRANKSHAFT PULLEY





(a) Using SST, hold the pulley in place and loosen the pulley bolt.
SST: 09213-58013
91651-60855
SST: 09330-00021





(b) Using SST, remove the pulley bolt and pulley.
SST: 09950-50013
09951-05010
09952-05010
09953-05020
09954-05021





5. REMOVE TIMING CHAIN OR BELT COVER OIL SEAL

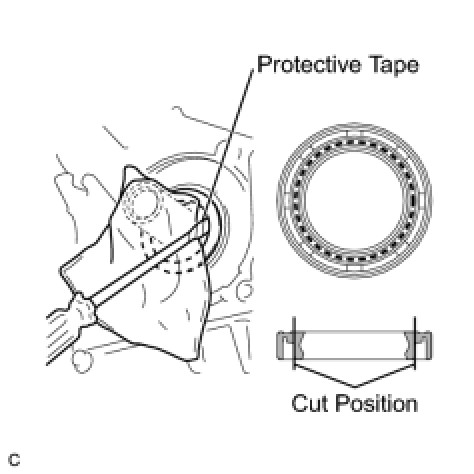

(a) Using a knife, cut off the oil seal lip.
(b) Using a screwdriver with its tip taped, pry out the oil seal.
NOTICE: After the removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
