2ZR-FE ENGINE MECHANICAL: FRONT CRANKSHAFT OIL SEAL: INSTALLATION

INSTALLATION





1. INSTALL TIMING CHAIN OR BELT COVER OIL SEAL
(a) Apply MP grease to a new oil seal lip.

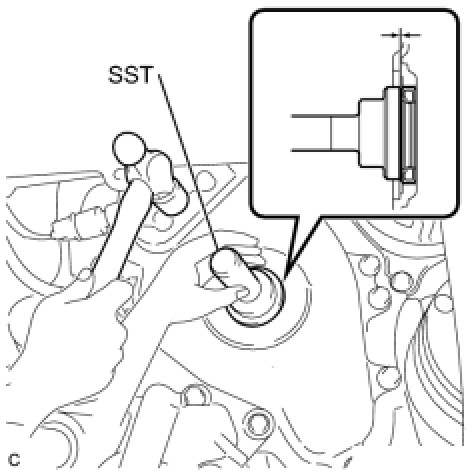

(b) Using SST and a hammer, tap the oil seal until its surface is flush with the timing chain cover edge.
SST: 09223-22010
NOTICE:
- Do not tap the oil seal at an angle.
- Keep the lip free of foreign matter.
HINT: The pressing-in depth should be within the range of -1 mm and 1 mm from the chain cover edge.

2. INSTALL CRANKSHAFT PULLEY
(a) Align the pulley set key with the key groove of the pulley.





(b) Using SST, hold the pulley in place and tighten the bolt.
SST: 09213-58013
91651-60855
SST: 09330-00021
Torque: 190 Nm (1940 kgf-cm, 140 ft-lbf)
3. INSTALL FAN AND GENERATOR V BELT Installation
4. ADJUST FAN AND GENERATOR V BELT Installation
5. INSPECT FAN AND GENERATOR V BELT Installation
6. INSTALL NO. 2 CYLINDER HEAD COVER Installation
7. INSPECT FOR ENGINE OIL LEAK
8. INSTALL ENGINE UNDER COVER RH
