ABS (w/VSC), TRAC, VSC

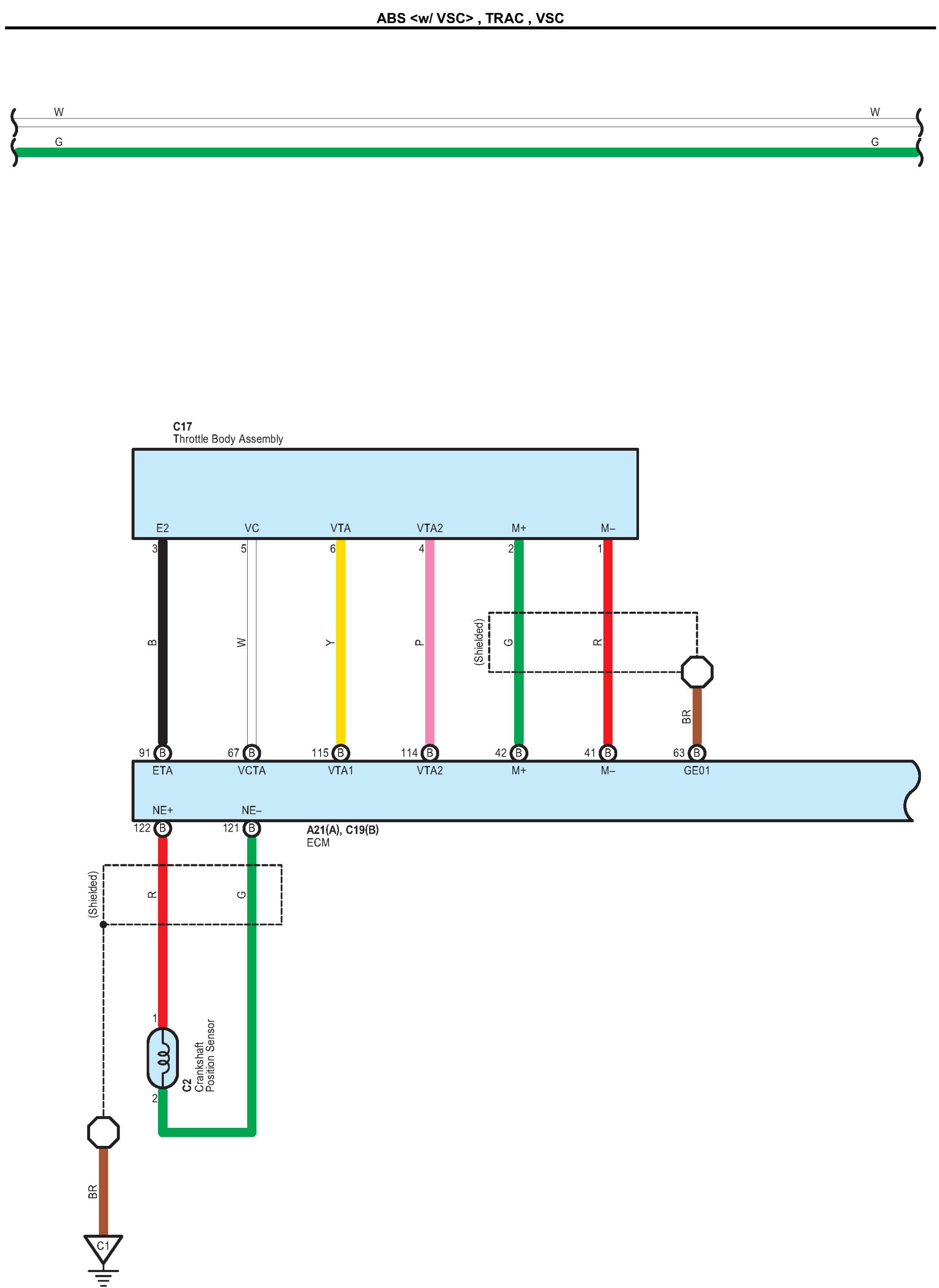

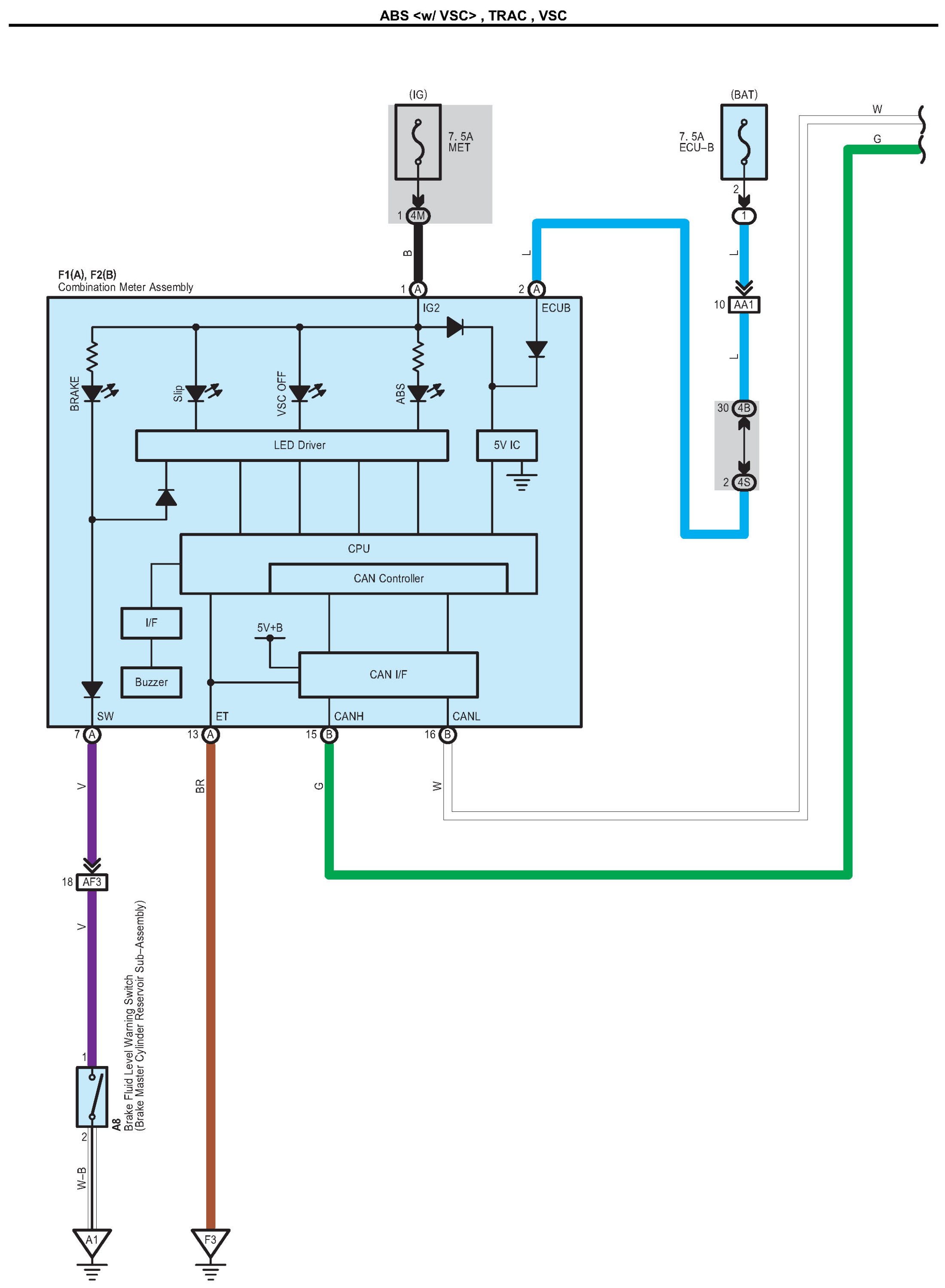

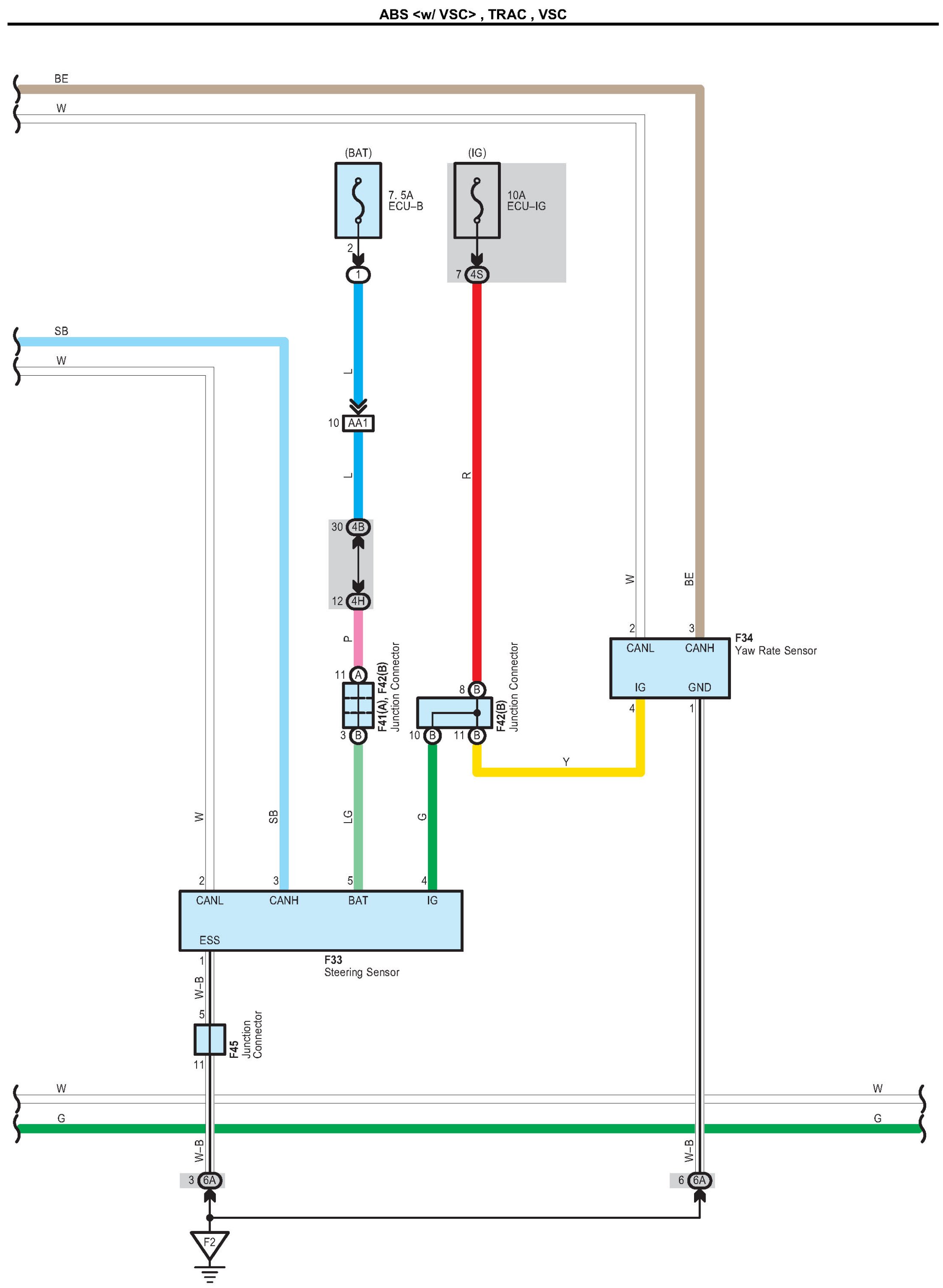

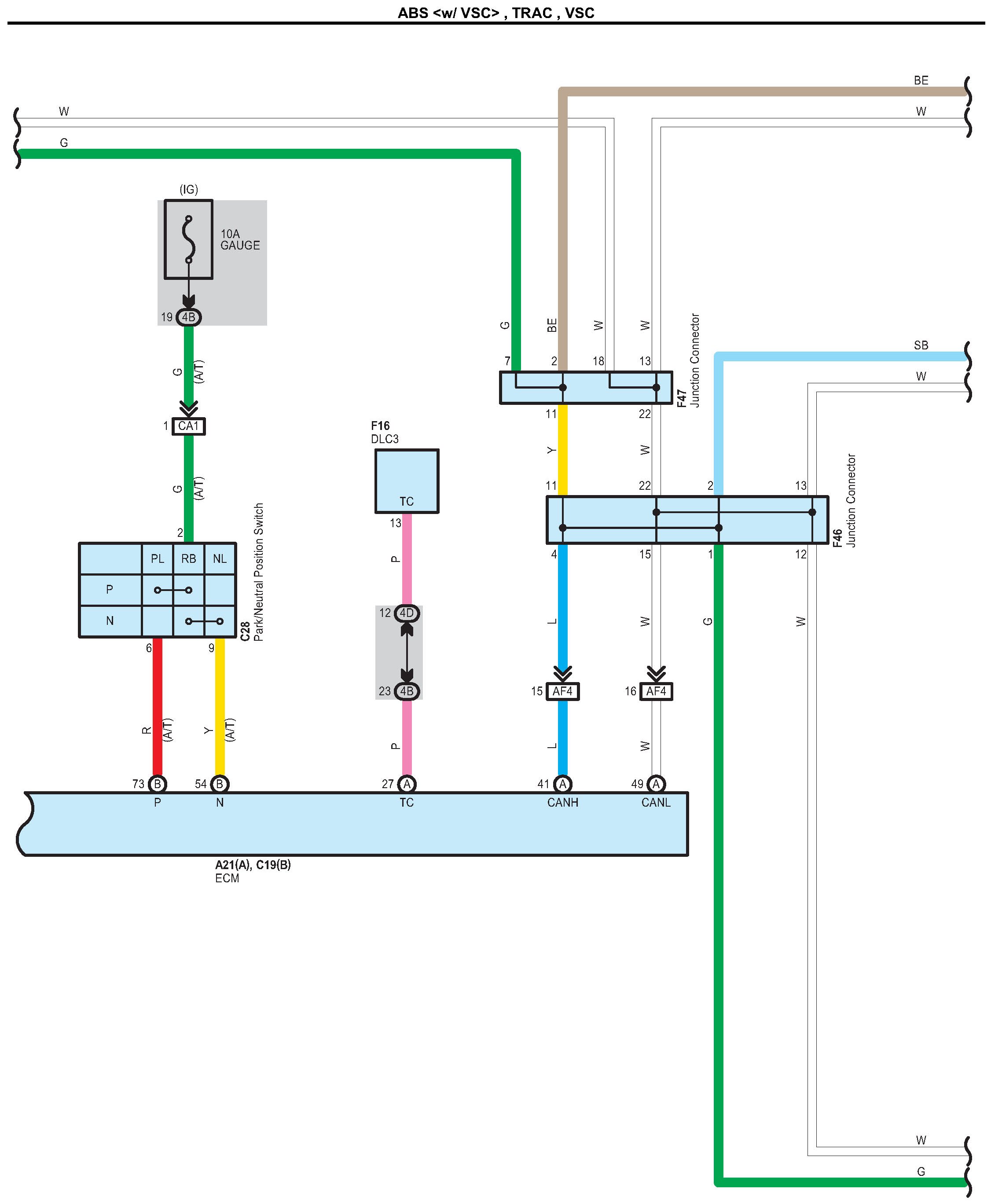

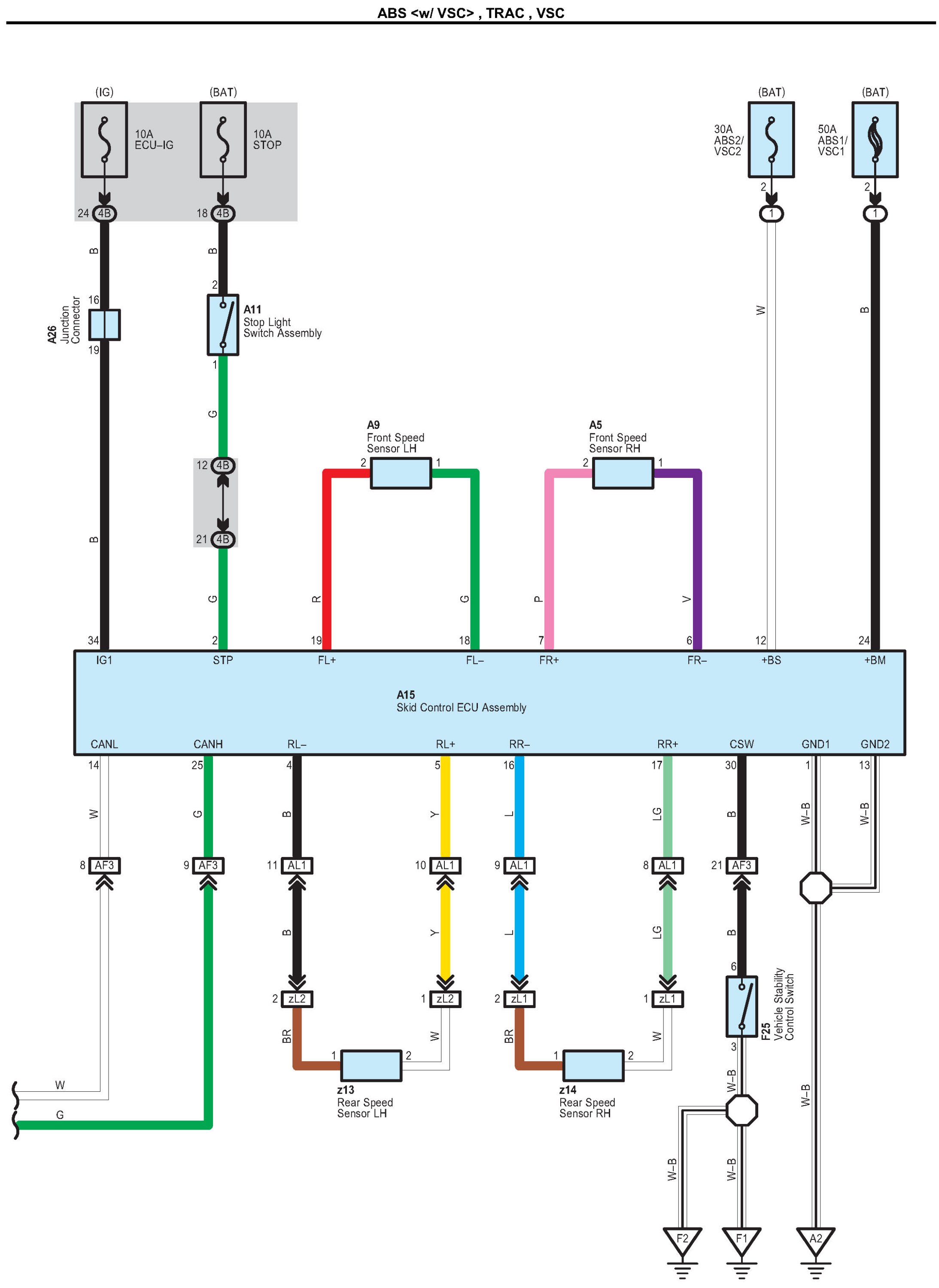

ABS <w/VSC>, TRAC, VSC Part 1:

ABS <w/VSC>, TRAC, VSC Part 2:

ABS <w/VSC>, TRAC, VSC Part 3:

ABS <w/VSC>, TRAC, VSC Part 4:

ABS <w/VSC>, TRAC, VSC Part 5:

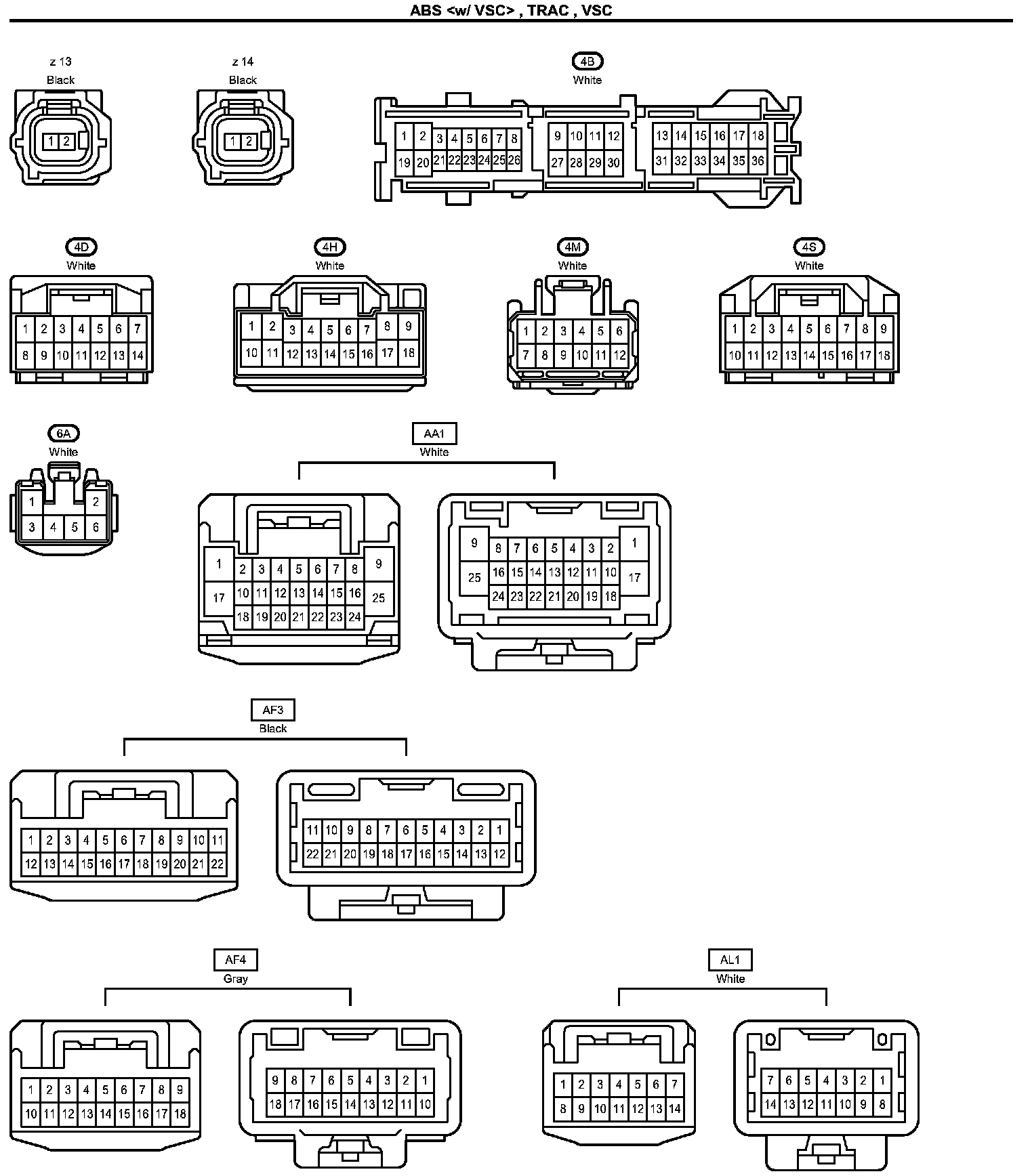

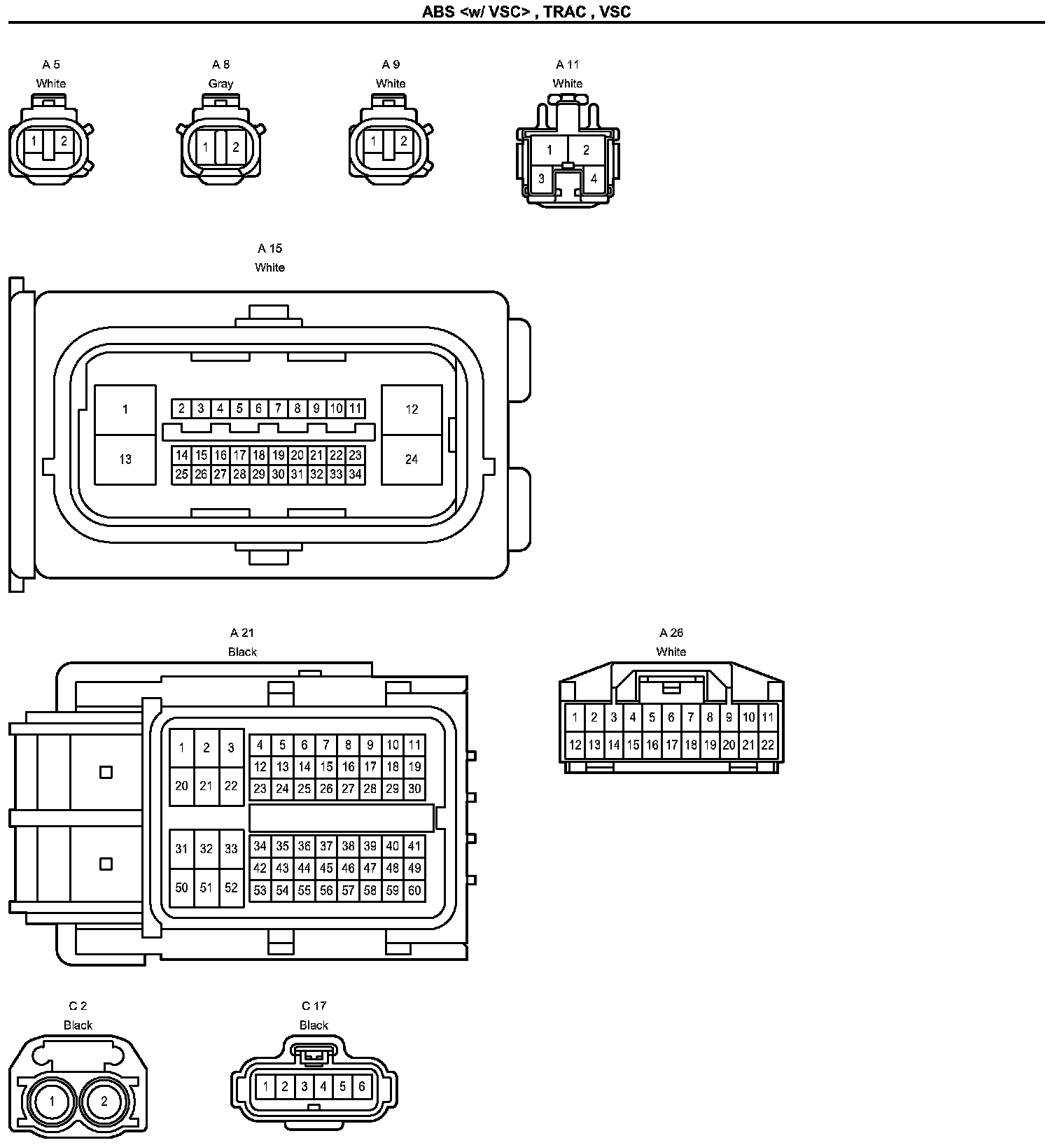

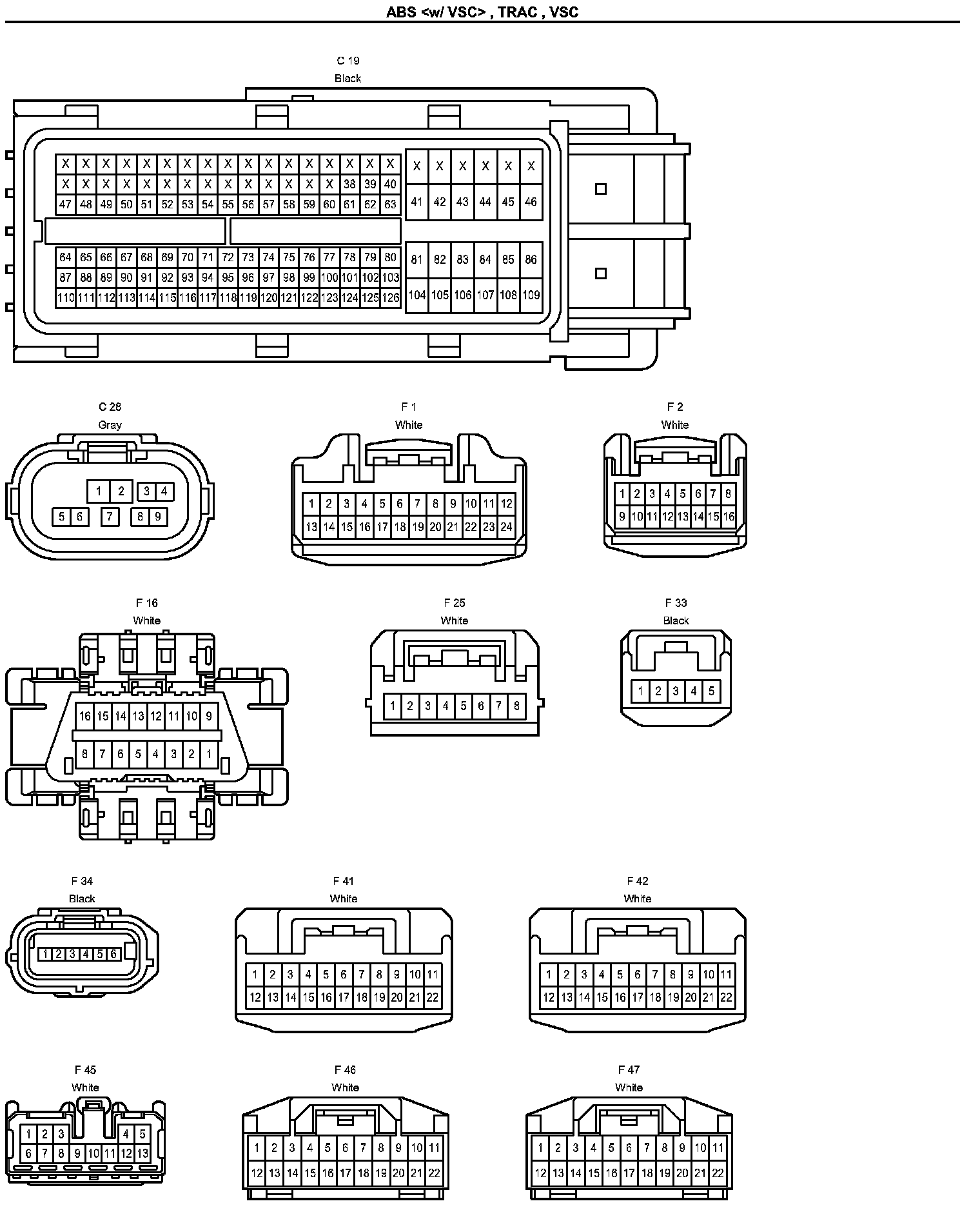

Connectors Part 1:

Connectors Part 2:

Connectors Part 3:

Connectors Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
