Wire and Wire In Instrument Panel
Wire and Wire In Instrument Panel

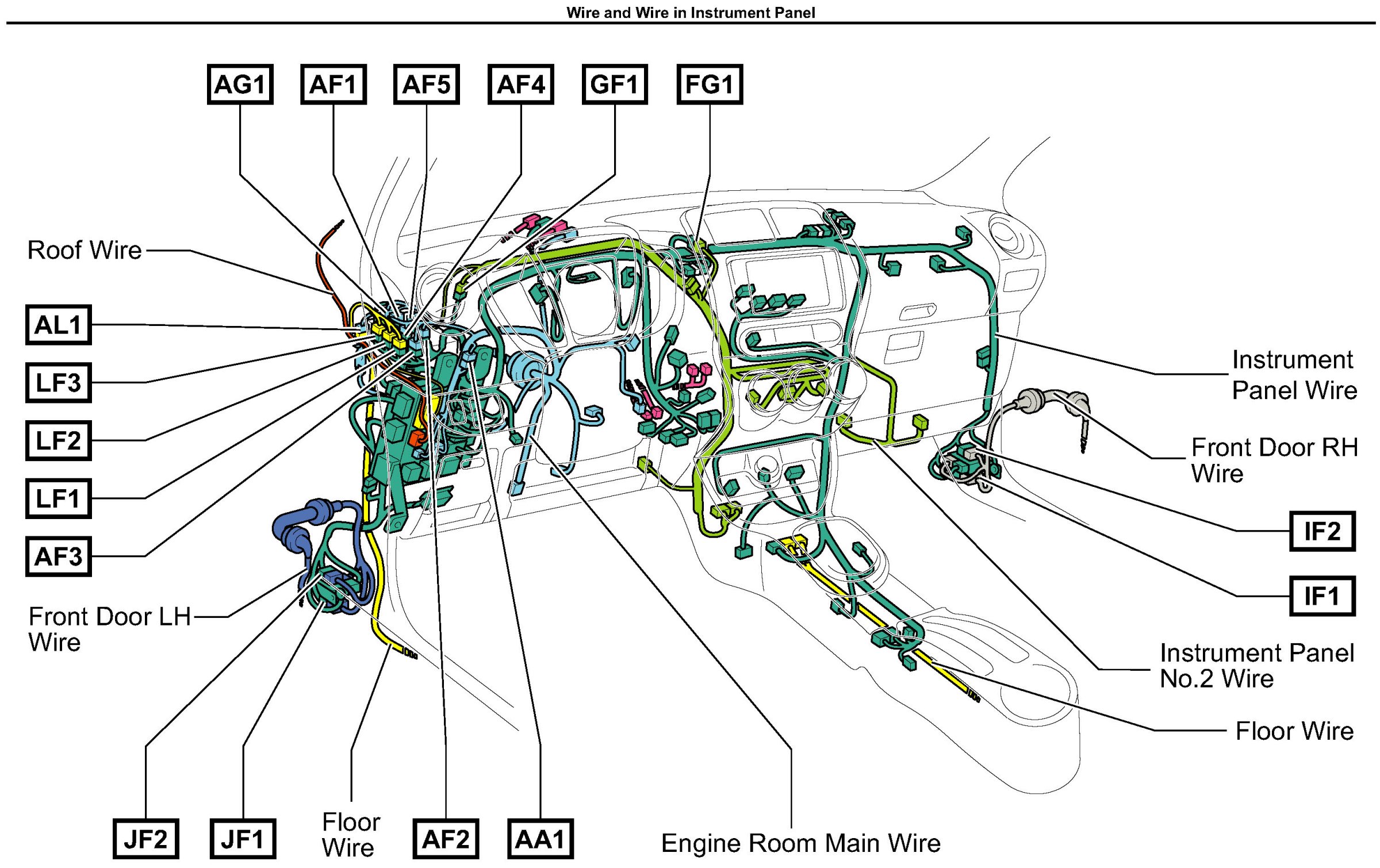

AA1-LF3:

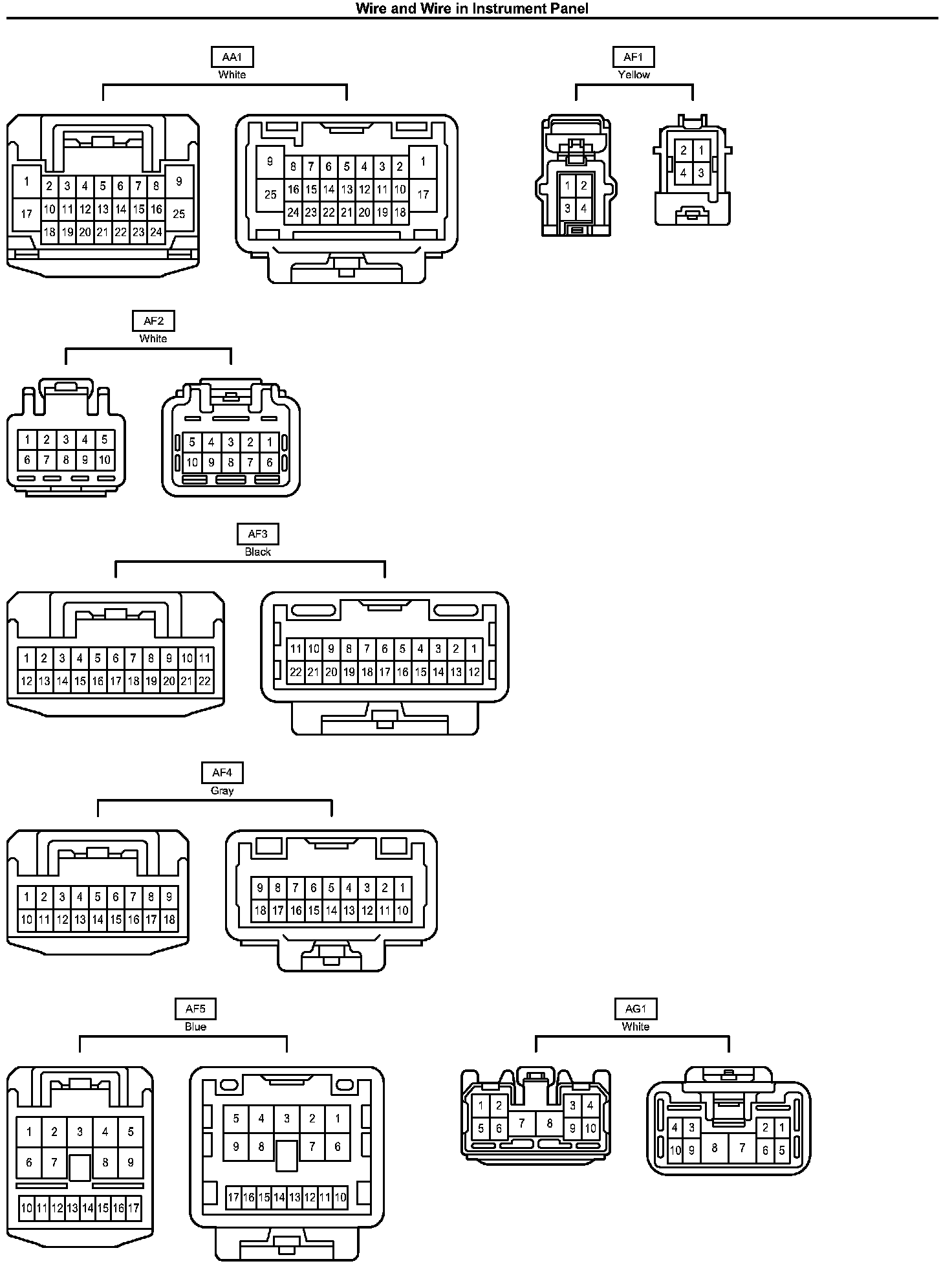

AA1-AG1:

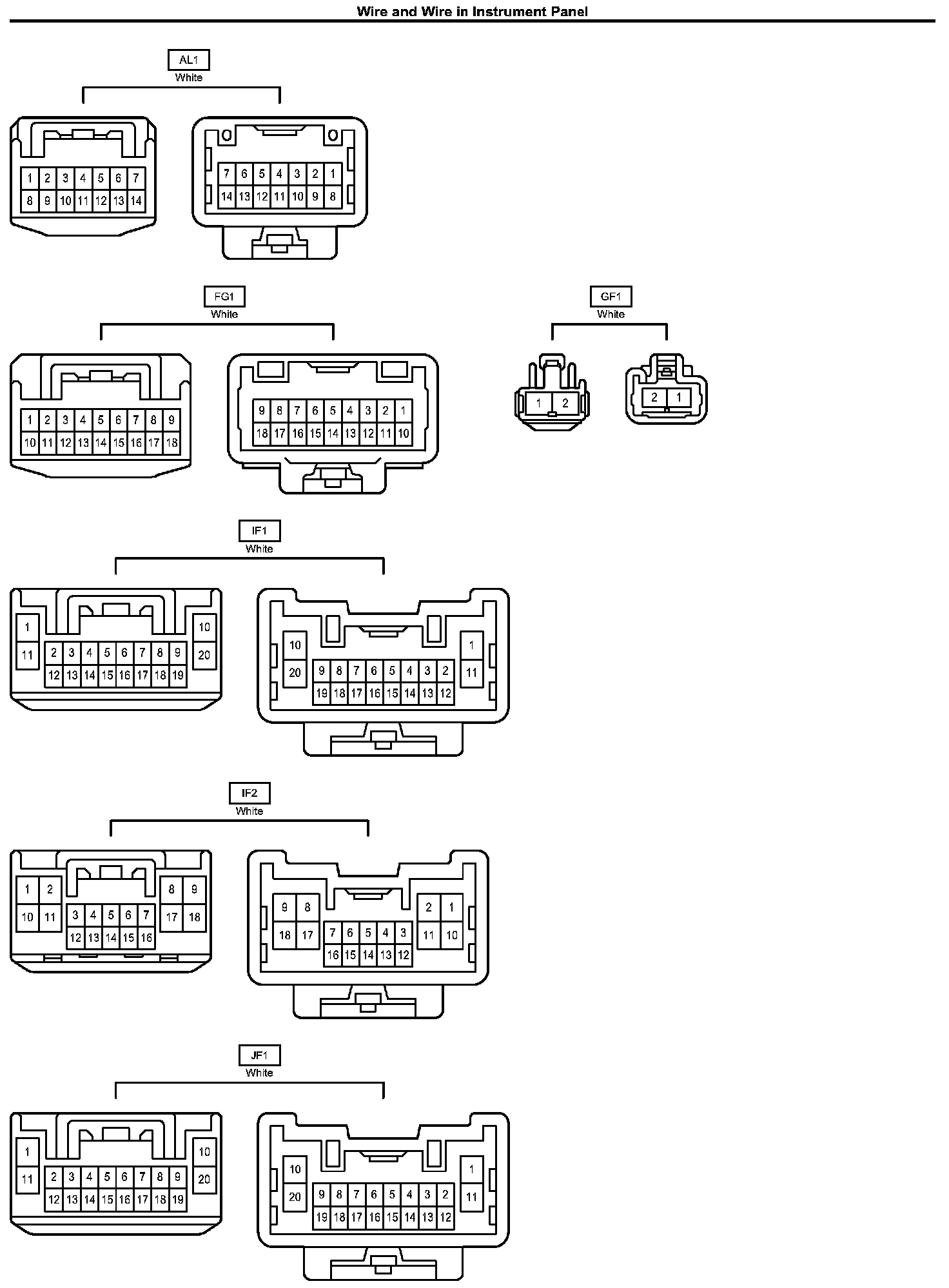

AL1-JF1:

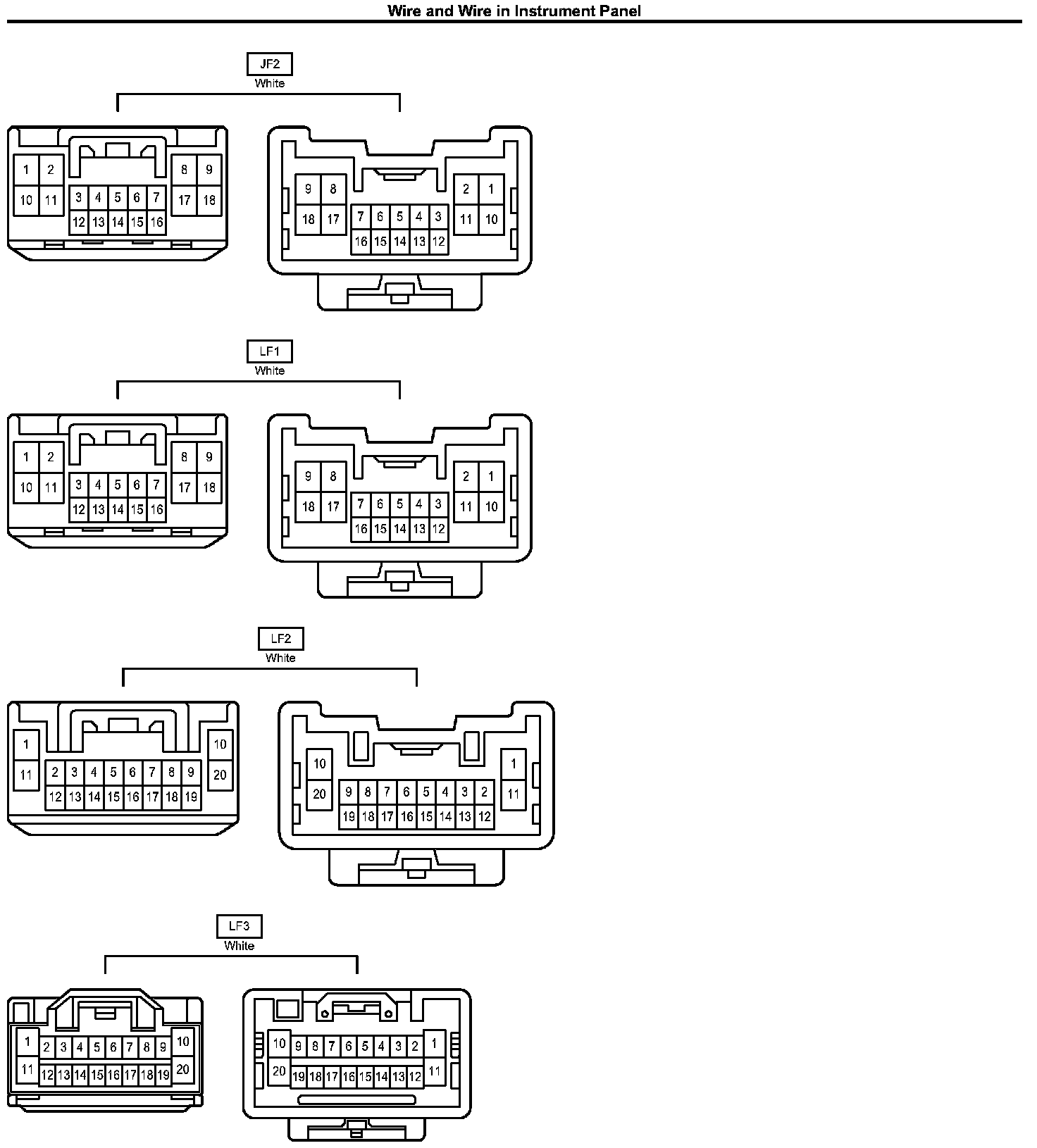

JF2-LF3:
