Home >> Scion >> 2009 >> xD L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By Connector Number >> GF1 (Instrument Panel No.2 Wire and Instrument Panel Wire (Instrument Panel Reinforcement))

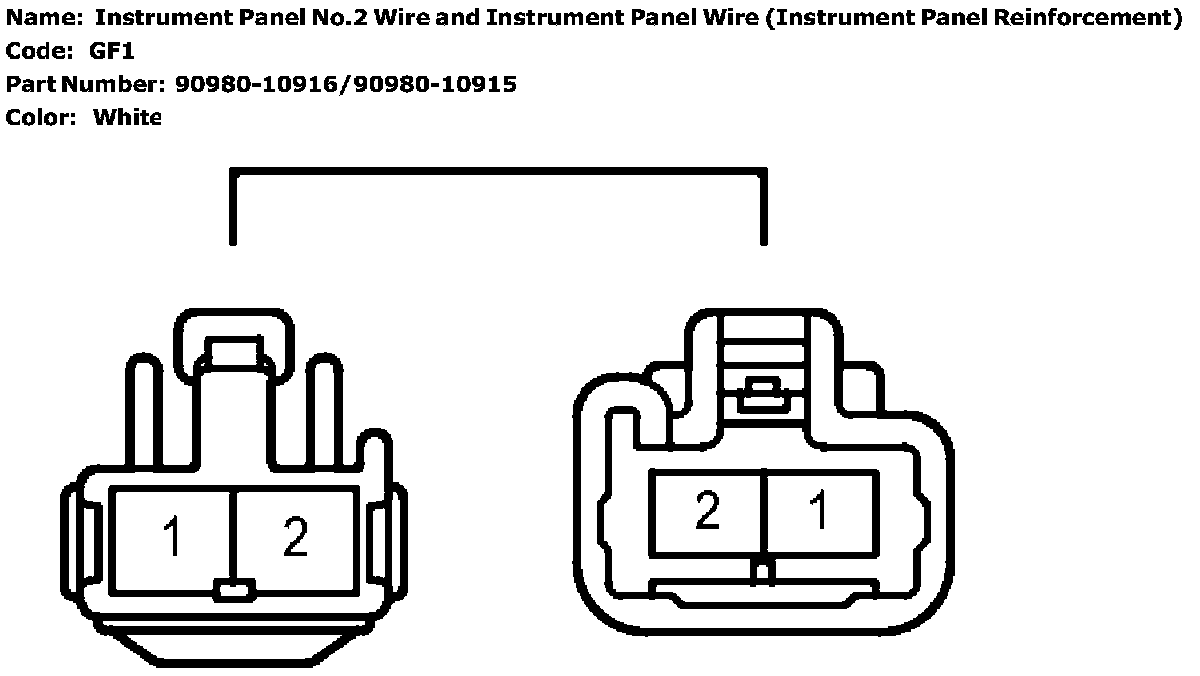

GF1 (Instrument Panel No.2 Wire and Instrument Panel Wire (Instrument Panel Reinforcement))
