Reassembly

BRAKE: BRAKE MASTER CYLINDER: REASSEMBLY

REASSEMBLY

1. INSTALL MASTER CYLINDER RESERVOIR GROMMET
(a) Apply lithium soap base glycol grease to 2 new grommets.
(b) Install the 2 grommets onto the brake master cylinder reservoir.
2. INSTALL BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY
(a) Install the brake master cylinder reservoir to the master cylinder body.





(b) Fix the brake master cylinder in a vise between aluminum plates.
NOTICE: Do not overtighten the vise.

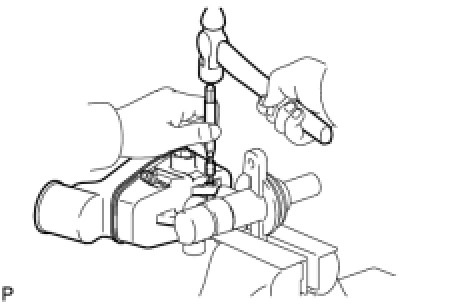

(c) Using a pin punch and a hammer, tap in the straight pin.
3. INSTALL BRAKE MASTER CYLINDER RESERVOIR STRAINER
4. INSTALL BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY
