BRAKE: REAR BRAKE FLEXIBLE HOSE: INSTALLATION

INSTALLATION

1. INSTALL REAR BRAKE FLEXIBLE HOSE





(a) Install the flexible hose with 2 new clips onto the axle beam.

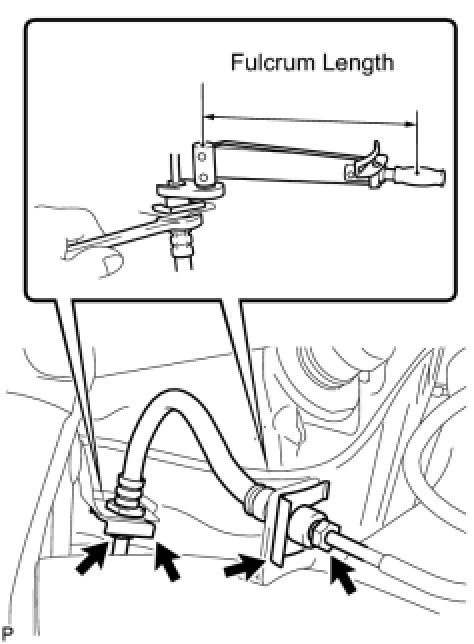

(b) Using a union nut wrench, install the 2 brake tubes onto the flexible hose while holding the flexible hose with a wrench.
without union nut wrench - Torque: 15 Nm (155 kgf-cm, 11 ft-lbf)
with union nut wrench - Torque: 14 Nm (144 kgf-cm, 10 ft-lbf)
NOTICE:
- This torque value can be obtained by using a torque wrench with a fulcrum length of 300 mm (11.8 in.) and a union nut wrench with a fulcrum length of 22 mm (0.866 in.) Service Precautions.
- This torque value is effective when the union nut wrench is parallel to a torque wrench.

2. FILL RESERVOIR WITH BRAKE FLUID Service and Repair
3. BLEED MASTER CYLINDER Service and Repair
4. BLEED BRAKE LINE Service and Repair
5. BLEED BRAKE ACTUATOR (w/ VSC) Service and Repair
6. CHECK FLUID LEVEL IN RESERVOIR Service and Repair
7. INSPECT FOR BRAKE FLUID LEAK
8. INSTALL REAR WHEEL
Torque: 103 Nm (1050 kgf-cm, 76 ft-lbf)
