Removal

BRAKE: FRONT BRAKE FLEXIBLE HOSE: REMOVAL

REMOVAL

1. REMOVE FRONT WHEEL
2. DRAIN BRAKE FLUID
NOTICE: Immediately wash off any brake fluid that comes into contact with any painted surfaces.

3. REMOVE FRONT BRAKE FLEXIBLE HOSE

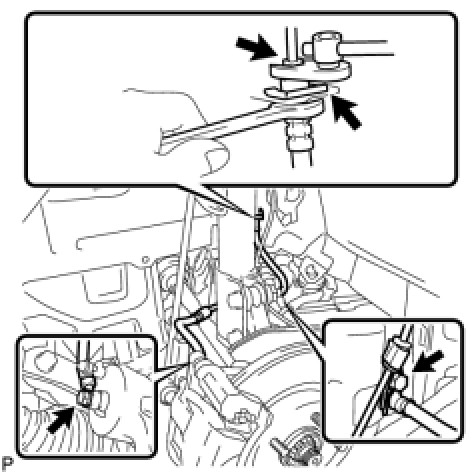

(a) Using a union nut wrench, separate the brake tube while holding the flexible hose with a wrench.
NOTICE:
- Do not bend or damage the brake tube.
- Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting position.

(b) Remove the clip.
(c) Remove the bolt and separate the flexible hose and speed sensor.
(d) Remove the union bolt and gasket and remove the flexible hose from the disc brake cylinder.
