Vehicle Stability Control System








BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

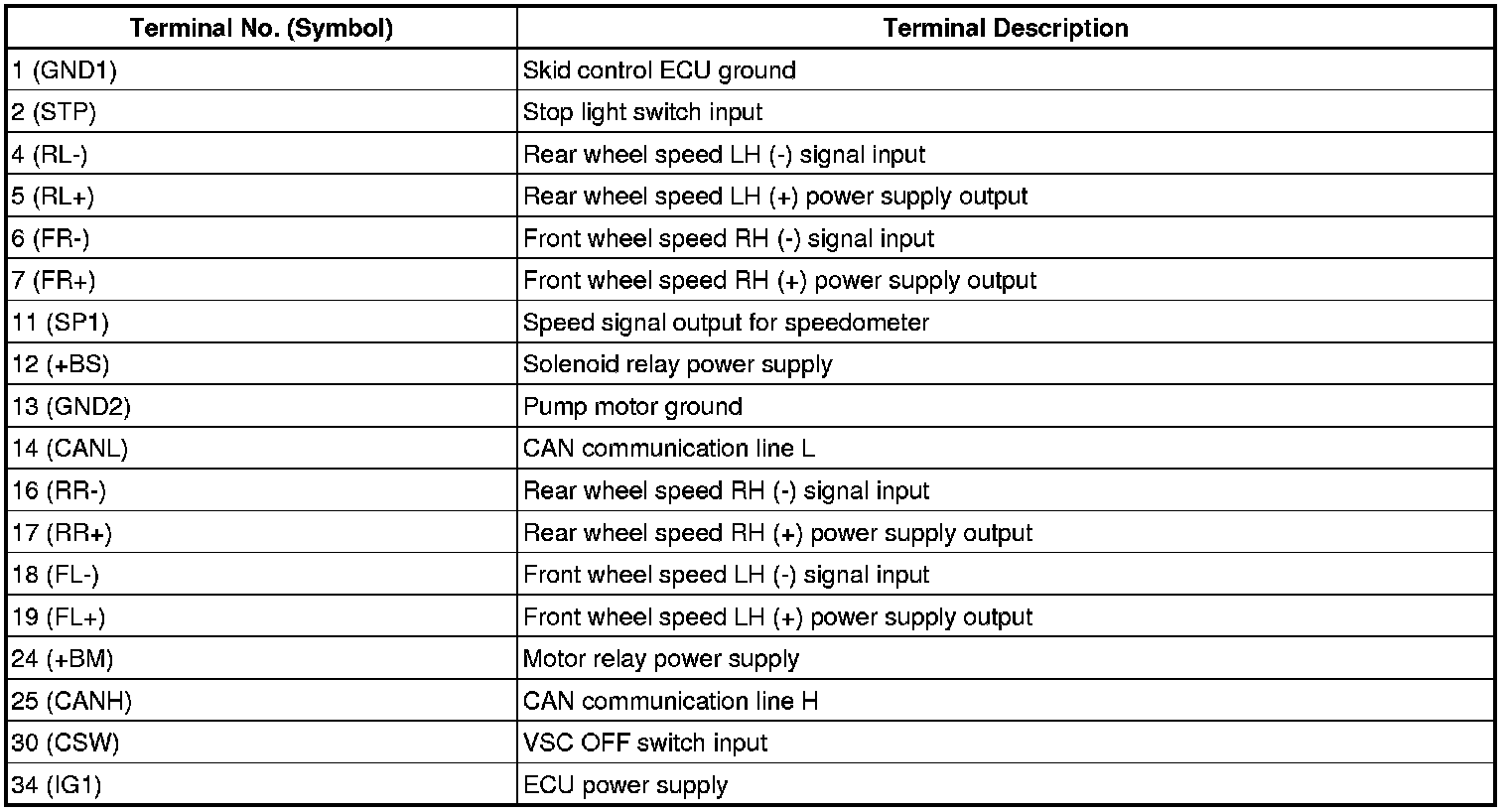

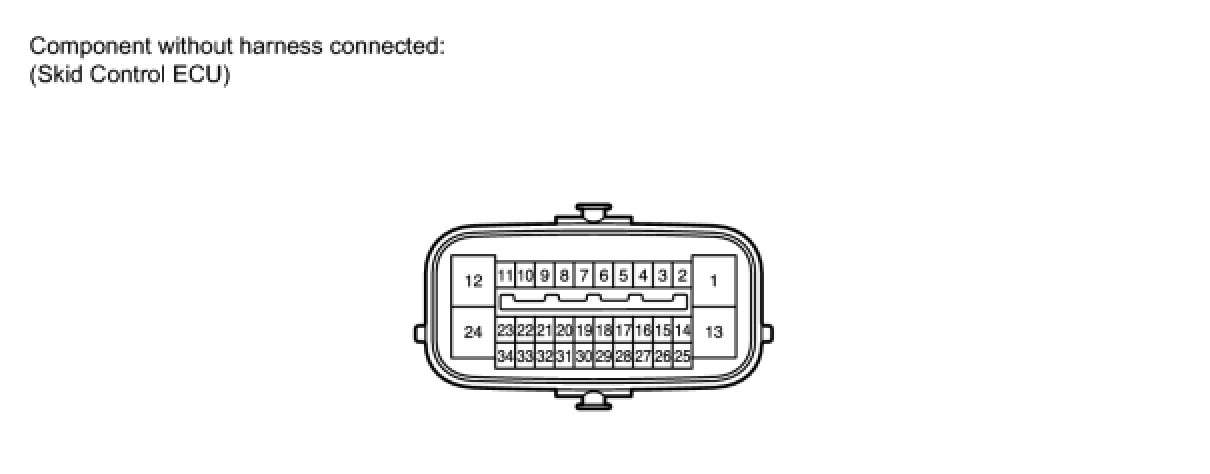

1. TERMINALS OF ECU

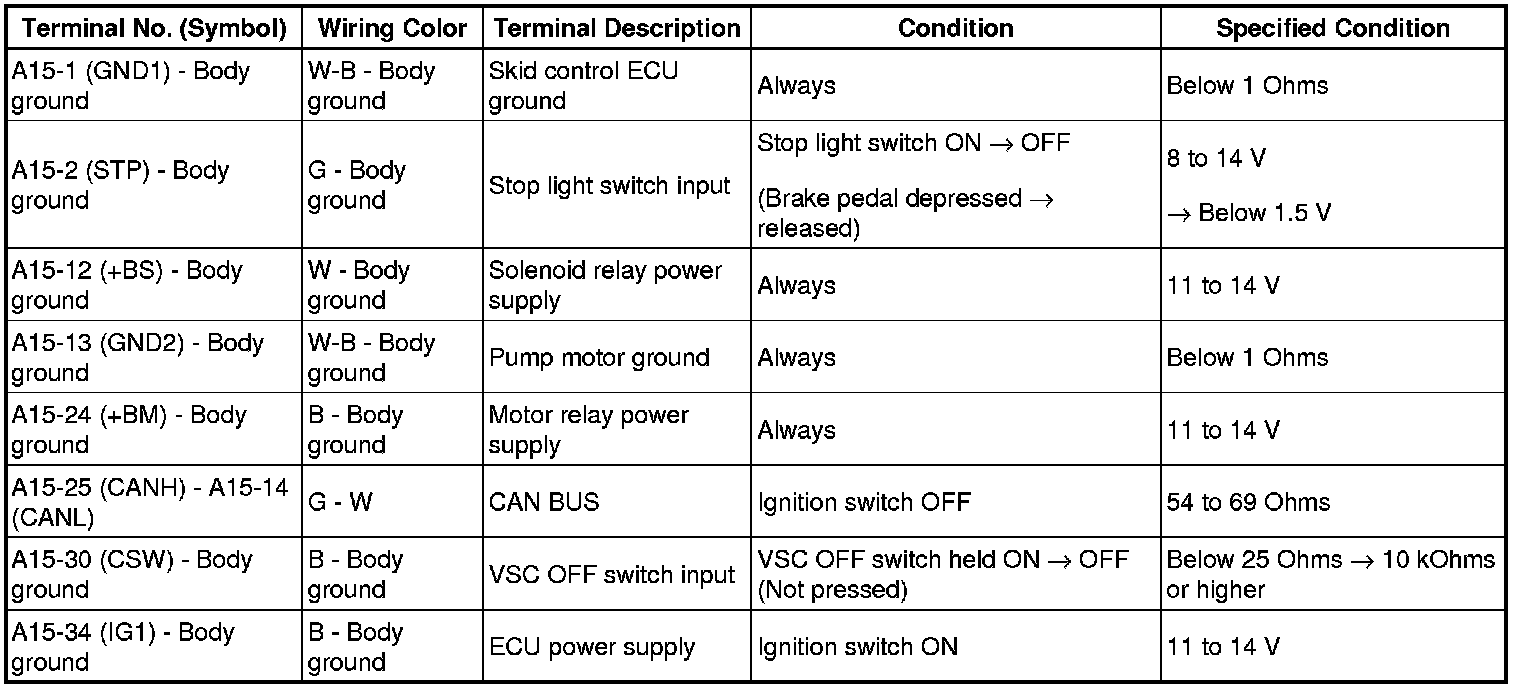

2. TERMINAL INSPECTION

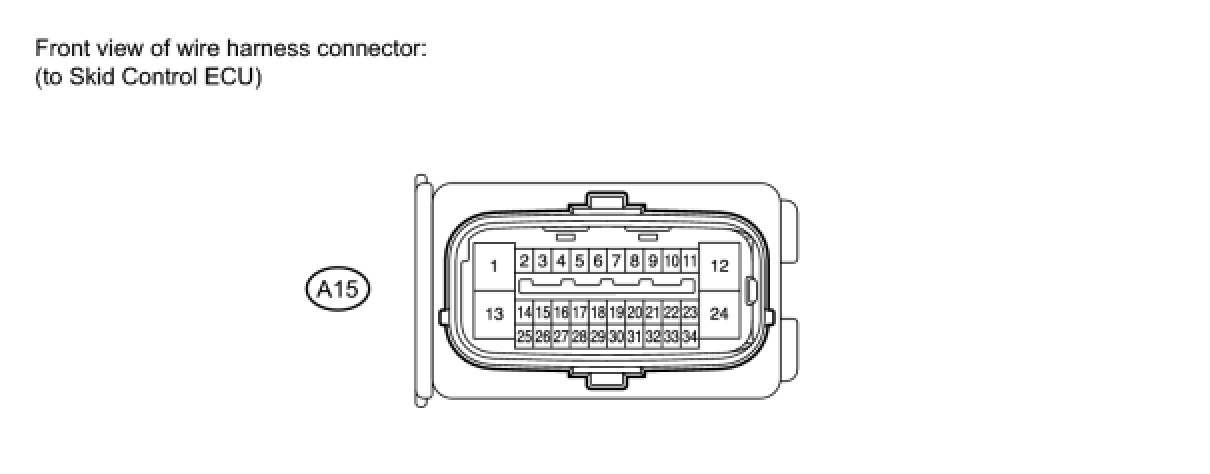

(a) Disconnect the connector and measure the voltage or resistance on the wire harness side.




HINT: Voltage cannot be measured with the connector connected to the skid control ECU as the connector is watertight.

Standard:
