Torque Specifications








SERVICE SPECIFICATIONS: SEAT: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

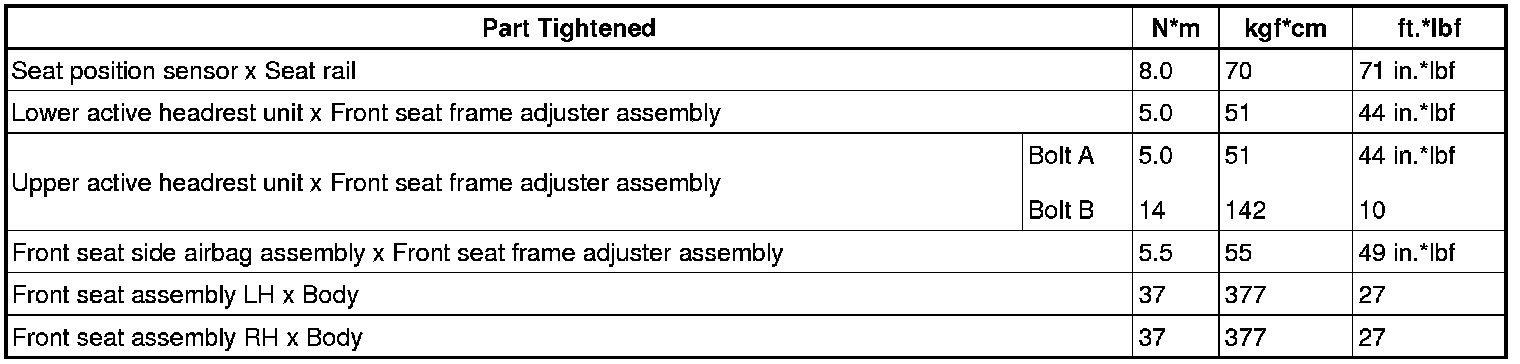

FRONT SEAT ASSEMBLY:

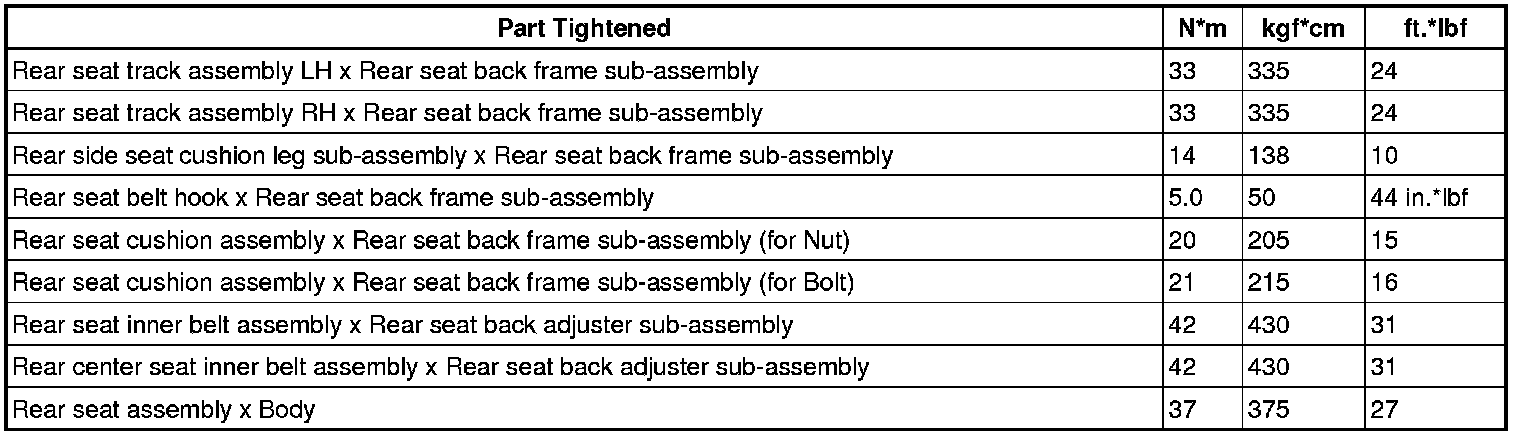

REAR SEAT ASSEMBLY (for LH Side):

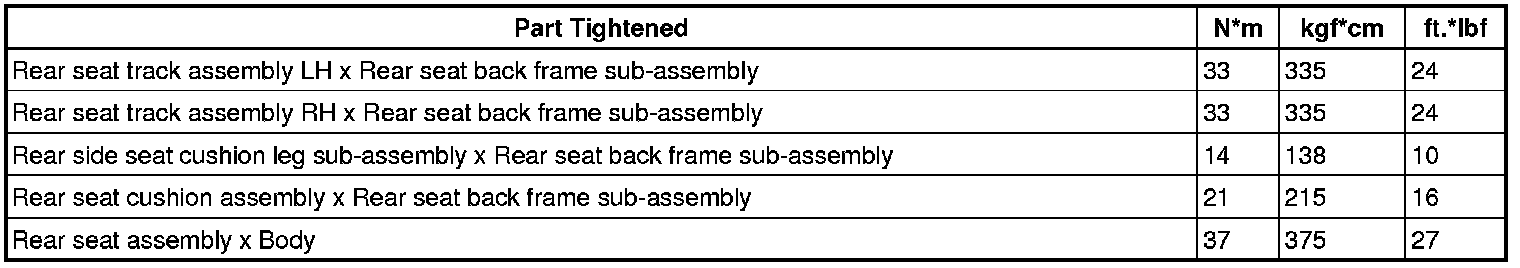

REAR SEAT ASSEMBLY (for RH Side):
