SEAT: REAR SEAT ASSEMBLY (for RH Side): INSTALLATION

INSTALLATION
NOTICE: Always use "TORX" socket wrench E10 when installing the rear seat.

1. INSTALL REAR SEAT ASSEMBLY





(a) Insert the 2 location pins through the 2 body holes and install the rear seat.

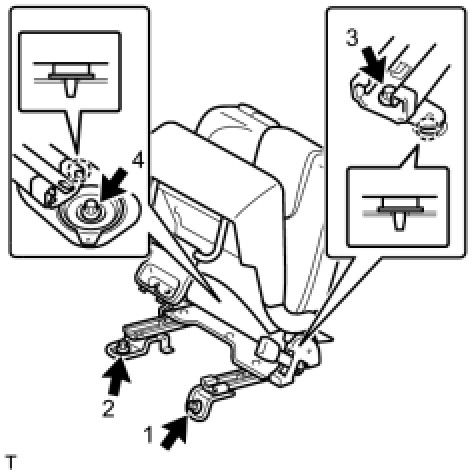

(b) Using "TORX" socket wrench E10, install the 4 bolts in the sequence shown in the illustration.
Torque: 37 Nm (377 kgf-cm, 27 ft-lbf)





(c) Install the rear seat cushion.

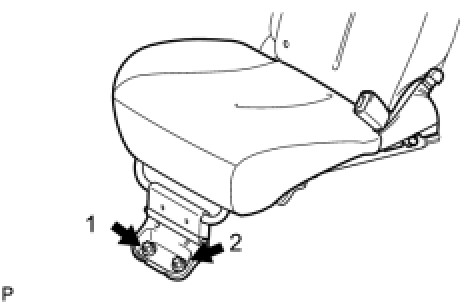

(d) Using "TORX" socket wrench E10, install the 2 bolts in the sequence shown in the illustration.
Torque: 37 Nm (377 kgf-cm, 27 ft-lbf)
2. INSTALL NO. 1 REAR SEAT LEG COVER

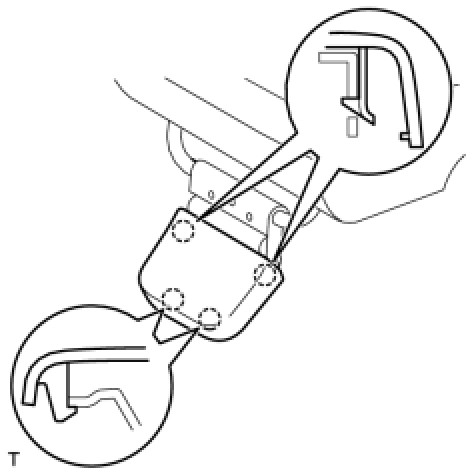

(a) Engage the 4 claws and install the No. 1 rear seat leg cover.
