Removal

MIRROR: OUTER REAR VIEW MIRROR GLASS: REMOVAL

REMOVAL

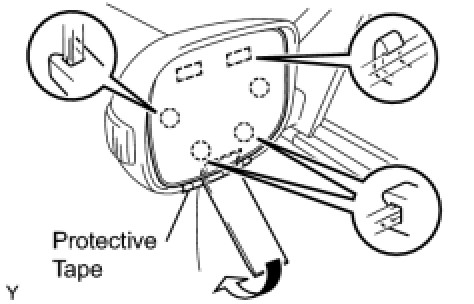

1. REMOVE OUTER MIRROR GLASS





(a) Apply protective tape to the bottom of the visor of the door mirror.
(b) Push the upper part of the mirror surface and tilt it.
(c) Using a moulding remover, disengage the 4 claws and 2 hooks.
