Disassembly

INTERIOR: REAR CONSOLE BOX: DISASSEMBLY

DISASSEMBLY

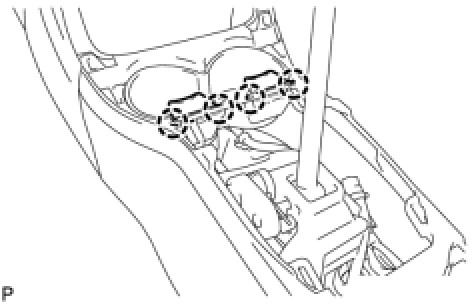

1. REMOVE NO. 1 INSTRUMENT PANEL CUP HOLDER LOCK
(a) Disengage the 4 claws and remove the No. 1 instrument panel cup holder lock.

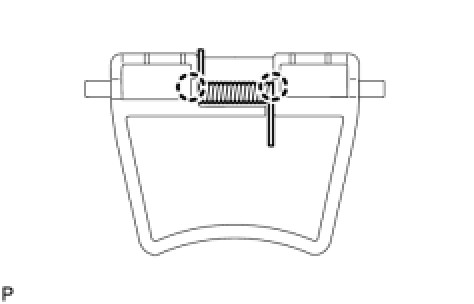

2. REMOVE NO. 1 INSTRUMENT PANEL CUP HOLDER SPRING
(a) Disengage the 2 claws and remove the No. 1 instrument panel cap holder spring.
