Installation

ENGINE HOOD / DOOR: BACK DOOR SUPPORT: INSTALLATION

INSTALLATION

1. INSTALL BACK DOOR STAY BOLT
(a) Clean the threaded portion on the vehicle body with a non-residue solvent.
(b) Apply adhesive to the threads of the 2 bolts.
Adhesive:
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent





(c) Install the back door stay bolt.
Torque: 22 Nm (224 kgf-cm, 16 ft-lbf)
2. INSTALL BACK DOOR DAMPER STAY UPPER BRACKET
(a) Clean the threaded portion on the vehicle body with a non-residue solvent.
(b) Apply adhesive to the threads of the 2 bolts.
Adhesive:
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent





(c) Install the back door damper stay upper bracket with the 2 bolts.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
3. INSTALL BACK DOOR STAY ASSEMBLY
NOTICE:
- Avoid touching the stroke portions of the rod as much as possible to prevent foreign matter from attaching to the stroke portions. Be sure to hold the cylinders while servicing.
- Do not wear cotton gloves or other similar materials when handling the rod. Fibers may attach to the rod and result in gas leaks.
- Do not apply any load to the cylinders in the horizontal direction, in order to prevent the rod from being deformed.

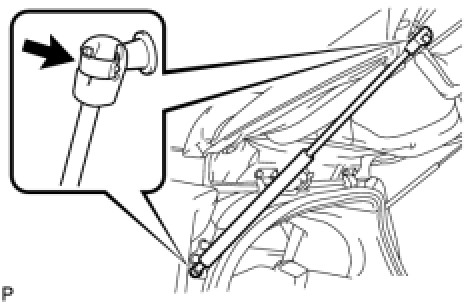

(a) Install the stop ring to the back door stay assembly.
NOTICE: Install the back door stay assembly while supporting the back door by hand.

(b) Install the back door stay assembly.
