Installation

ENGINE HOOD / DOOR: HOOD LOCK CONTROL CABLE ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL HOOD LOCK CONTROL CABLE ASSEMBLY
(a) Pass the hood lock control cable assembly into the engine compartment.

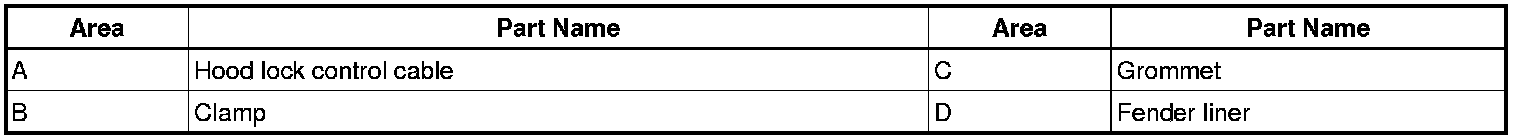

(b) Connect the clamps as shown in the illustration.
2. INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY





(a) Install the hood lock control lever sub-assembly and connect the hood lock control cable.
3. INSTALL HOOD LOCK ASSEMBLY





(a) Apply MP grease to the sliding areas of the lock.





(b) Connect the hood lock control cable.





(c) Install the hood lock assembly with the 3 bolts.
Torque: 7.5 Nm (76 kgf-cm, 66 in-lbf)
4. INSPECT HOOD SUB-ASSEMBLY Adjustments
5. ADJUST HOOD SUB-ASSEMBLY Adjustments
6. INSTALL FRONT FENDER LINER LH





(a) Install the front fender liner LH with 3 new grommets.
(b) Install the 8 clips and 6 screws.





(c) Install the pin hold clip.
NOTICE: Install the pin hold clip with the slot aligned vertically. Do not rotate the clip after inserting it. After installation, confirm that the slot is vertical.

7. INSTALL SIDE MUDGUARD Installation
8. INSTALL ROCKER PANEL MOULDING COVER Installation
9. INSTALL FRONT WHEEL
