Disassembly

EXTERIOR: REAR BUMPER: DISASSEMBLY

DISASSEMBLY

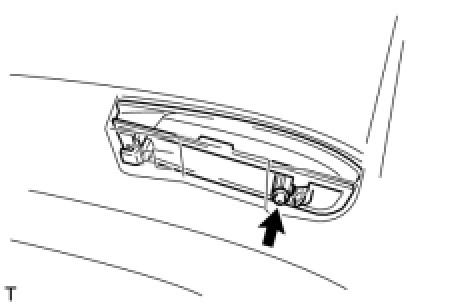

1. REMOVE REFLEX REFLECTOR ASSEMBLY LH
(a) Remove the screw and the reflex reflector.
2. REMOVE REFLEX REFLECTOR ASSEMBLY RH
HINT: Use the same procedure as for the LH side.

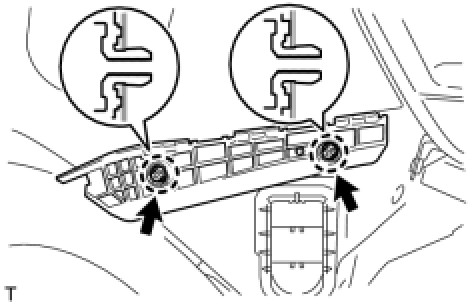

3. REMOVE REAR BUMPER SIDE RETAINER LH
(a) Remove the 2 screws.
(b) Disengage the 2 claws and remove the rear bumper side retainer.
4. REMOVE REAR BUMPER SIDE RETAINER RH
HINT: Use the same procedure as for the LH side.





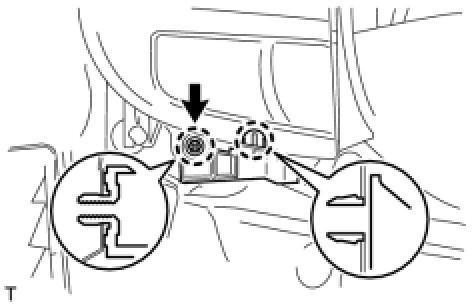

5. REMOVE REAR BUMPER SIDE SUPPORT LH
(a) Remove the screw.
(b) Disengage the 2 claws and remove the rear bumper side support.
6. REMOVE REAR BUMPER SIDE SUPPORT RH
HINT: Use the same procedure as for the LH side.

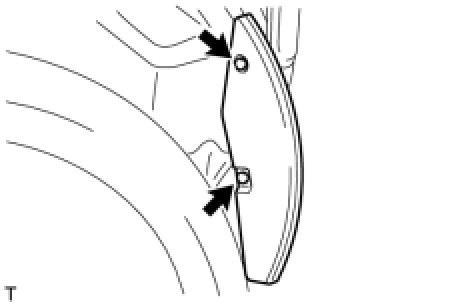

7. REMOVE REAR BUMPER SIDE SEAL LH
(a) Remove the 2 clips and the rear bumper side seal.
8. REMOVE REAR BUMPER SIDE SEAL RH
HINT: Use the same procedure as for the LH side.





9. REMOVE REAR BUMPER GUARD SUB-ASSEMBLY
(a) Disengage the 2 claws and 2 guides and remove the rear bumper guard.
HINT: Use the same procedure for the remaining parts.

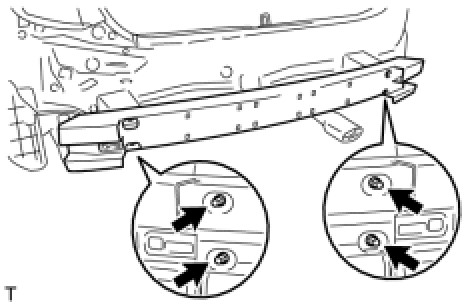

10. REMOVE REAR CENTER BUMPER SUB-ASSEMBLY
(a) Remove the 4 nuts and the rear center bumper.

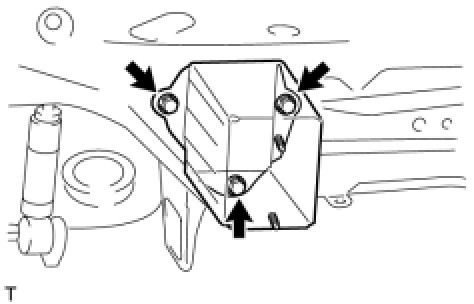

11. REMOVE REAR BUMPER ARM LH
(a) Remove the 3 bolts and rear bumper arm.
12. REMOVE REAR BUMPER ARM RH
HINT: Use the same procedure as for the LH side.
