AUDIO / VISUAL: REAR DOOR SPEAKER: INSTALLATION

INSTALLATION
HINT: The procedures listed below is for the RH side. Use the same procedures for both the RH side and LH sides, unless otherwise specified.

1. INSTALL REAR SPEAKER ASSEMBLY
(a) Using an air riveter or hand riveter, install the rear speaker with 3 new strike rivets.




HINT: Install the new strike rivets in the order shown in the illustration.





NOTICE:

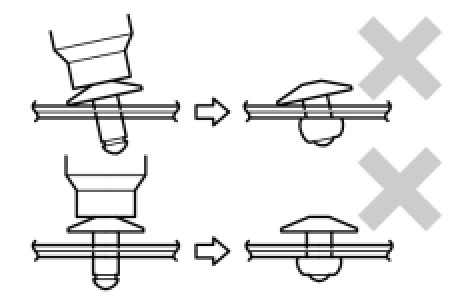

- Do not pry the rivet with the riveter, as this will cause damage to the riveter and mandrel.
- Confirm that the rivets are seated properly against the speaker.

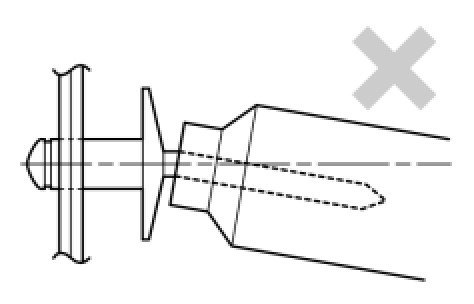

- Do not tilt the riveter when installing the rivet to the speaker.

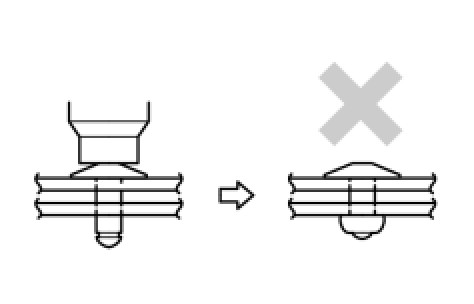

- Do not leave any space between the rivet head and speaker.
- Do not leave any space between the speaker and door. Firmly hold together the 2 items while installing the rivet.









(b) Connect the connector.
2. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY Reassembly
3. INSTALL REAR DOOR INSIDE HANDLE BEZEL Reassembly
4. INSTALL REAR DOOR ARMREST BASE UPPER PANEL Reassembly
