AUDIO / VISUAL: STEREO JACK ADAPTER ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL STEREO JACK ADAPTER ASSEMBLY

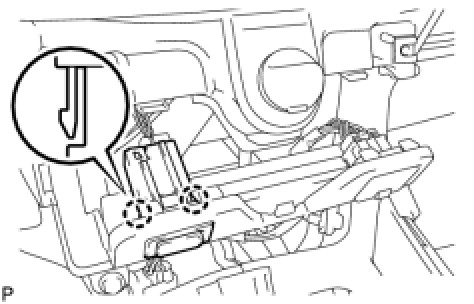

(a) Engage the 2 claws and install the stereo adapter assembly (iPod).
(b) Connect the connector (iPod).

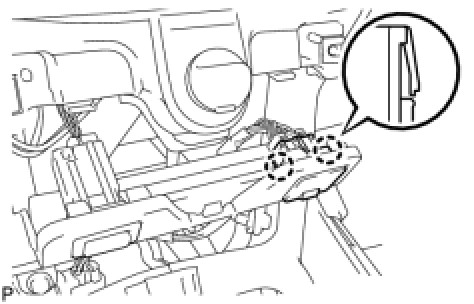

(c) Engage the 2 claws and install the stereo adapter assembly (AUX).
(d) Connect the connector (AUX).
2. INSTALL CONSOLE BOX PLATE

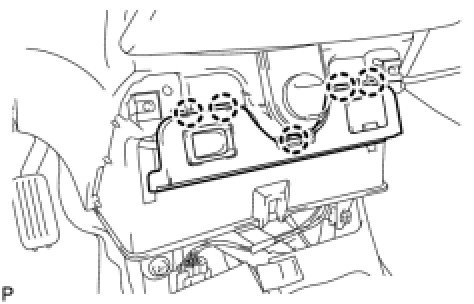

3. INSTALL INSTRUMENT LOWER PANEL
(a) Engage the 5 claws.

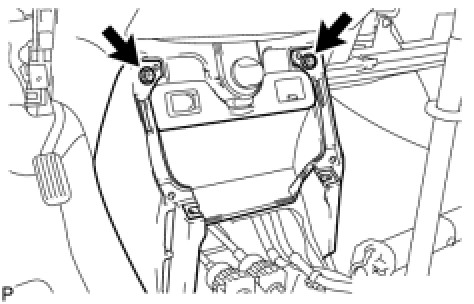

4. INSTALL FRONT CONSOLE BOX
(a) Install the 2 screws and the front console box.
5. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY Installation
6. INSTALL CONSOLE BOX CARPET Installation
7. INSTALL REAR CONSOLE BOX COVER Installation
8. INSTALL UPPER CONSOLE PANEL Installation
9. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Installation
