Remote Starting System - Cold Weather Operation Diag.

S-SB-0014-09

Rev1

March 24, 2009

Remote Engine Starter (RES) Cold Temperature Operation Diagnostic Tips

Service Category
Engine/Hybrid System

Section
Starting

Market
USA

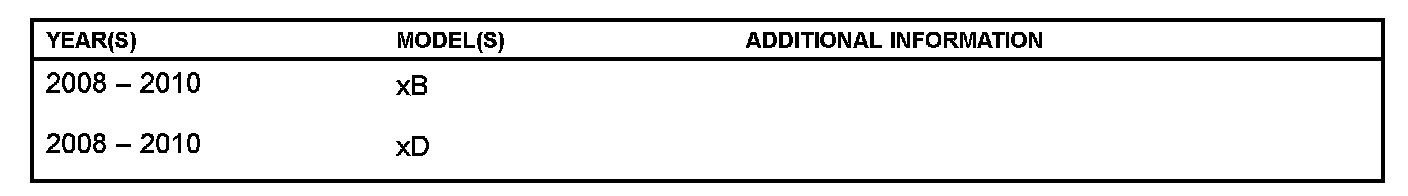

Applicability

TSB REVISION NOTICE

^ March 3, 2010 Rev1:

^ Applicability has been updated to include 2010 model year xB and xD vehicles.

Any previous printed versions of this service bulletin should be discarded.

Introduction

Some vehicles operated in extremely cold temperatures may exhibit a condition where the Remote Engine Starter (RES) does not function.

Before RES diagnosis confirm with the customer the ambient temperature when the malfunction was experienced.

The RES system was designed to operate at temperatures above -22 F (-30 C). Non-operation of the RES system below this threshold should be considered a normal condition.

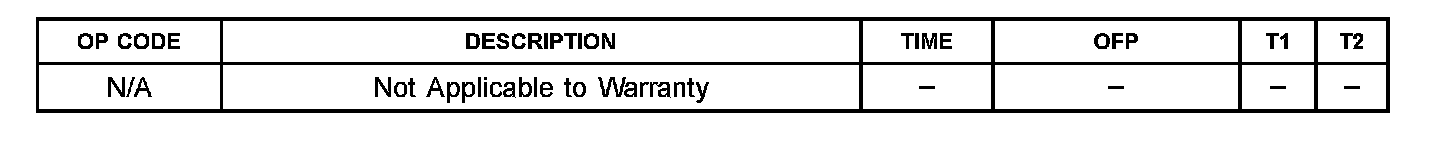

Warranty Information

Diagnostic Procedure

If the customer has experienced a RES malfunction above -22° F (-30° C) proceed with diagnosis referencing the applicable troubleshooting guide in the Technical Information System (TIS) Accessory tab Accessory Diagnostic Guide:

^ 2008 - 2010 xB:
"2008-2010 SCION xB TVIP V4 Remote Engine Starter (RES) Troubleshooting Guide Rev. A"

^ 2008 - 2010 xD:
"2008-2010 SCION xD TVIP V4 Remote Engine Starter (RES) Troubleshooting Guide Rev. B"
