Occupant Classification System Malfunction - Airbag System

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1650/32: Occupant Classification System Malfunction

DTC B1650/32 - Occupant Classification System Malfunction

DESCRIPTION

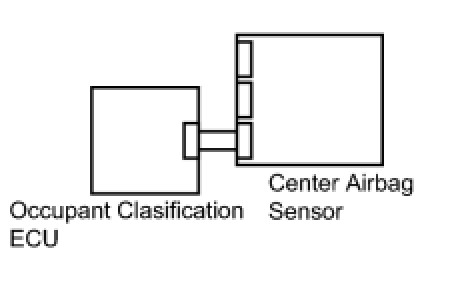

The occupant classification system circuit consists of the center airbag sensor and the occupant classification system.
If the center airbag sensor receives signals from the occupant classification ECU, it determines whether the front passenger airbag, the front seat side airbag RH and front seat outer belt should be operated.

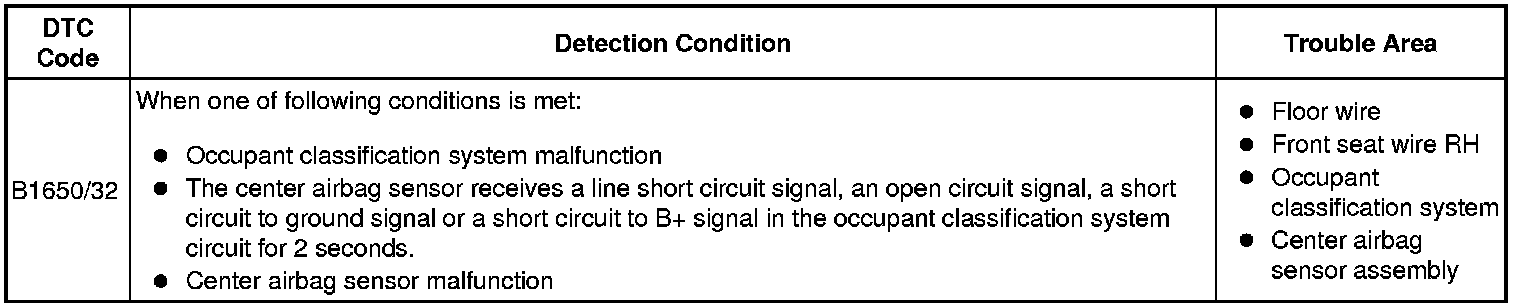

DTC B1650/32 is recorded when a malfunction is detected in the occupant classification system circuit.

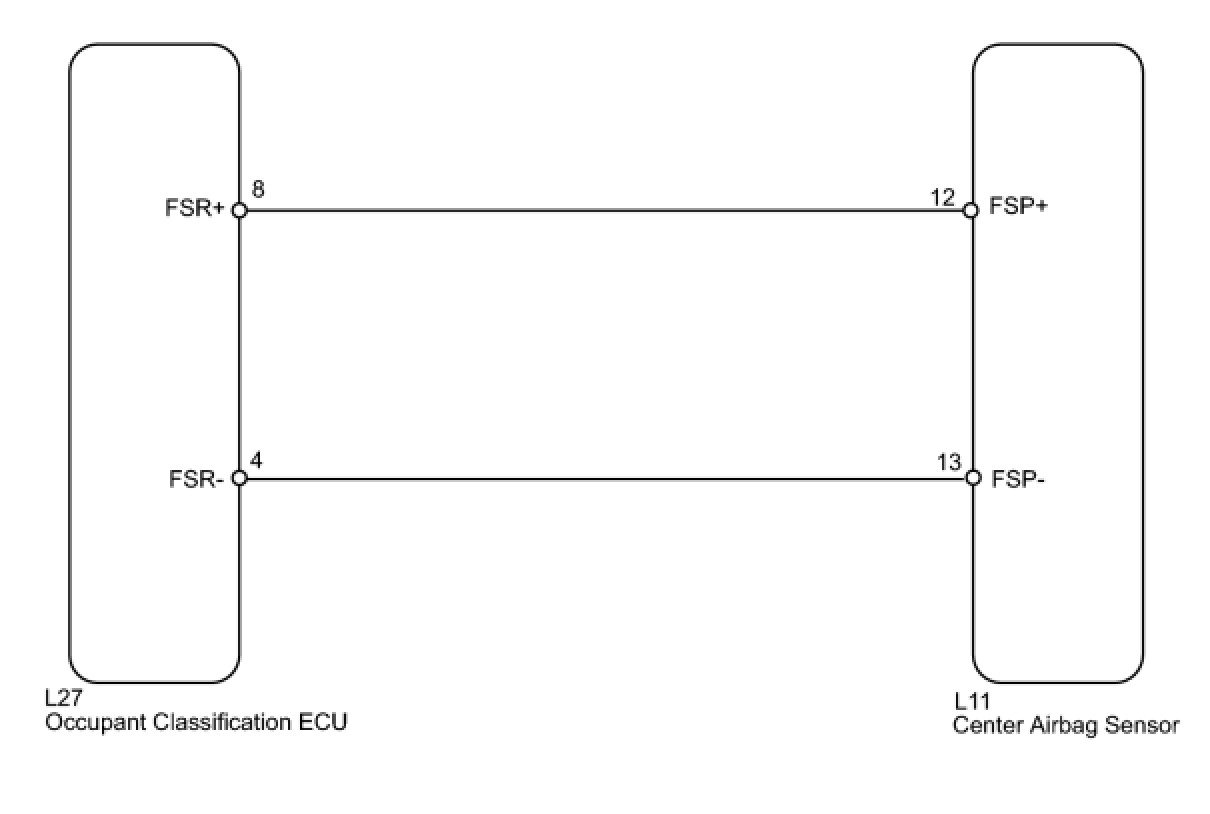

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC (OCCUPANT CLASSIFICATION ECU)
(a) Turn the ignition switch to ON, and wait for at least 10 seconds.
(b) Check for the DTCs of the occupant classification ECU Reading and Clearing Diagnostic Trouble Codes.
OK:
DTC is not output.
NG -- REPAIR CIRCUITS INDICATED BY OUTPUT DTCS
OK -- Continue to next step.
2. CHECK FOR DTC (CENTER AIRBAG SENSOR)




(a) Turn the ignition switch to ON, and wait for at least 60 seconds.
(b) Clear the DTCs DTC Check / Clear.
(c) Turn the ignition switch to OFF.
(d) Turn the ignition switch to ON, and wait for at least 60 seconds.
(e) Check for DTCs DTC Check / Clear.
OK:
DTC B1650/32 is not output.
HINT: Codes other than DTC B1650/32 may be output at this time, but they are not related to this check.

NG -- CHECK CONNECTION OF CONNECTORS
OK -- USE SIMULATION METHOD TO CHECK
3. CHECK CONNECTION OF CONNECTORS
(a) Turn the ignition switch to OFF.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Check that the connectors are properly connected to the center airbag sensor and the occupant classification ECU.
OK:
The connectors are properly connected.
NG -- CONNECT CONNECTORS PROPERLY
OK -- Continue to next step.
4. CHECK CONNECTORS
(a) Disconnect the connectors from the center airbag sensor and the occupant classification ECU.
(b) Check that the connectors (on the center airbag sensor side and occupant classification ECU side) are not damaged.
OK:
The connectors are not deformed or damaged.
NG -- REPLACE FLOOR WIRE
OK -- Continue to next step.
5. CHECK OCCUPANT CLASSIFICATION SYSTEM CIRCUIT

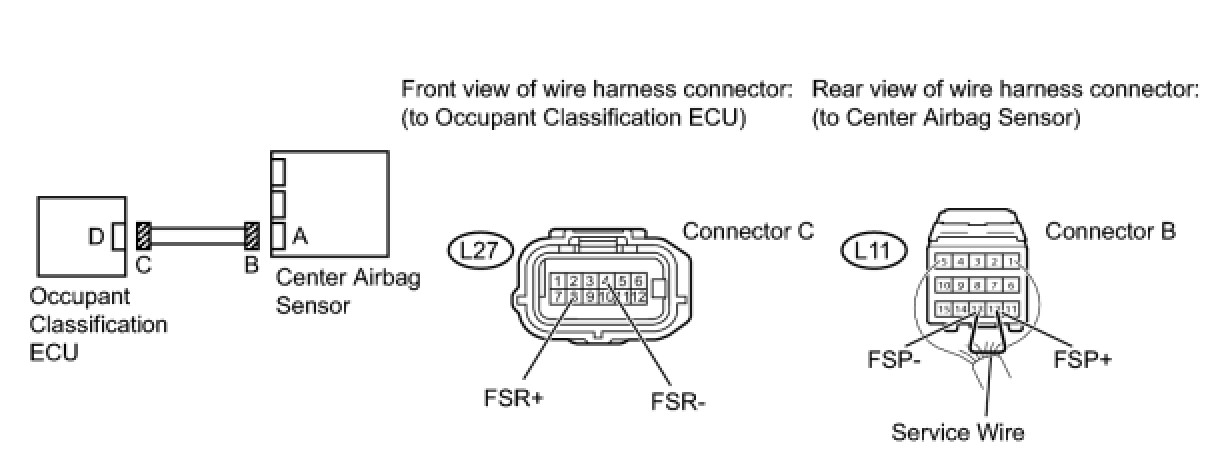

(a) Using a service wire, connect terminals 12 (FSP+) and 13 (FSP-) of connector B.
NOTICE: Do not forcibly insert a service wire into the terminals of the connector when connecting the wire.
(b) Measure the resistance according to the value(s) in the table below.

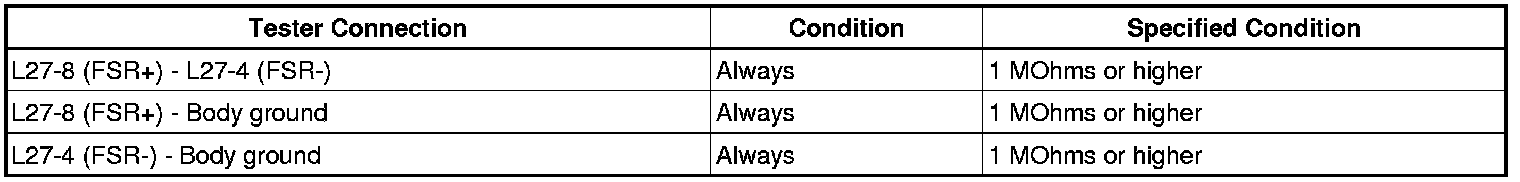

Standard resistance:





(c) Disconnect the service wire from connector B.
(d) Measure the resistance according to the value(s) in the table below.
Standard resistance:





(e) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(f) Turn the ignition switch to ON.
(g) Measure the voltage according to the value(s) in the table below.

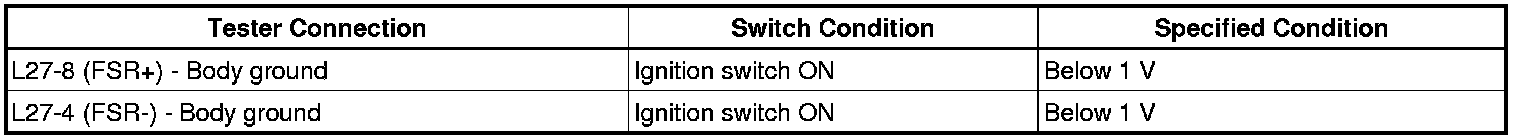

Standard voltage:






NG -- REPLACE FLOOR WIRE
OK -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY
