On-Vehicle Inspection

WIPER AND WASHER: FRONT WIPER MOTOR: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION





1. INSPECT FRONT WIPER MOTOR
(a) Check the automatic stop position.
(1) Operate the front wiper motor, then stop the operation.
(2) Check the automatic stop position when the front wiper motor operation has stopped.
OK:

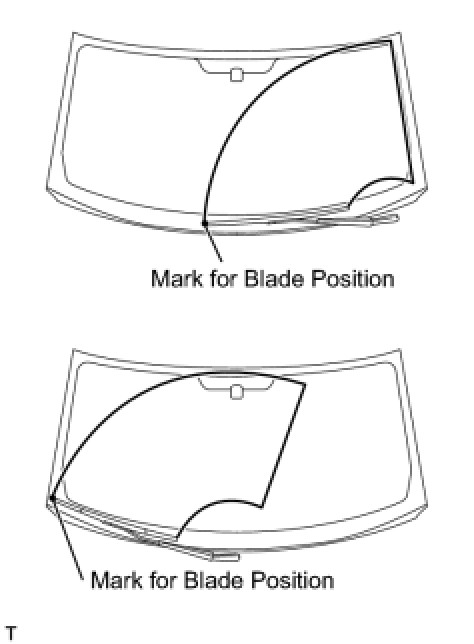

Front wiper arm stops in the position shown in the illustration.
