Removal

WIPER AND WASHER: REAR WIPER MOTOR: REMOVAL

REMOVAL

1. REMOVE BACK DOOR TRIM BOARD ASSEMBLY Disassembly
2. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

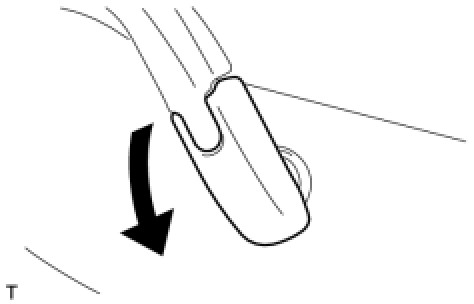

(a) Open the rear wiper arm head cap.

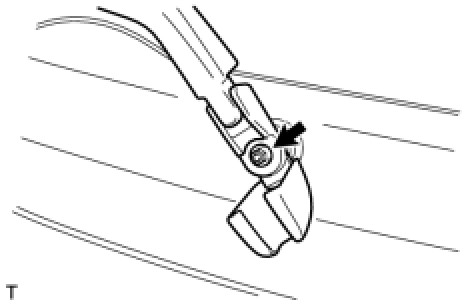

(b) Remove the nut and rear wiper arm and blade.





3. REMOVE REAR WIPER MOTOR

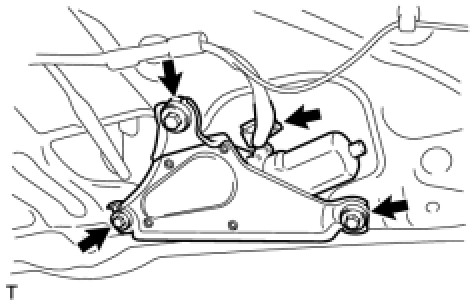

(a) Disconnect the connector.
(b) Loosen 3 bolts and remove the rear wiper motor.
NOTICE: Do not try to remove the bolts since they are integrated with the motor.





4. REMOVE REAR WIPER MOTOR GROMMET

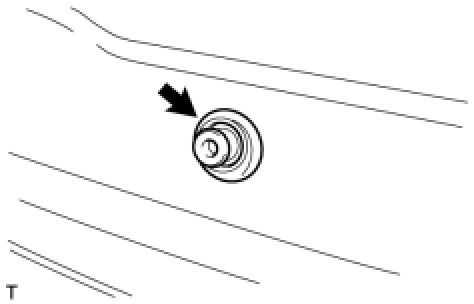

(a) Remove the rear wiper motor grommet.
