WIPER AND WASHER: REAR WIPER RUBBER: INSTALLATION

INSTALLATION

1. INSTALL REAR WIPER RUBBER

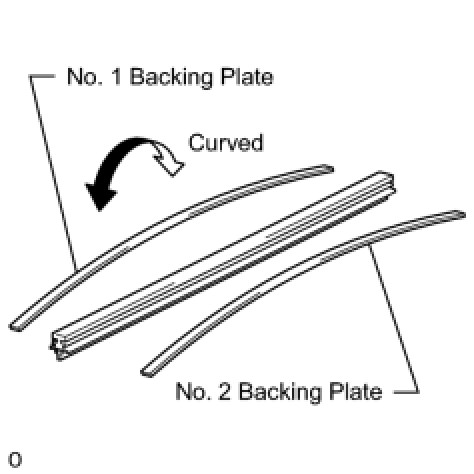

(a) Install the No. 1 and No. 2 backing plates as shown in the illustration.
NOTICE: Install the backing plates facing the correct direction.

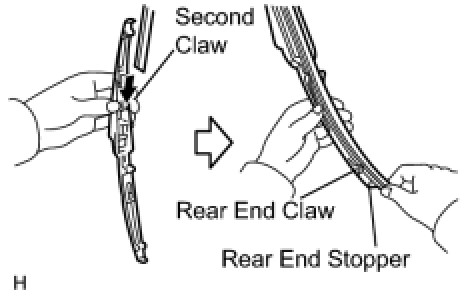

(b) Insert the wiper rubber from the front end of the wiper blade to the rear end through the second claw.
(c) After pushing the wiper rubber through the rear end claw, allow it to stick out from the rear end stopper.

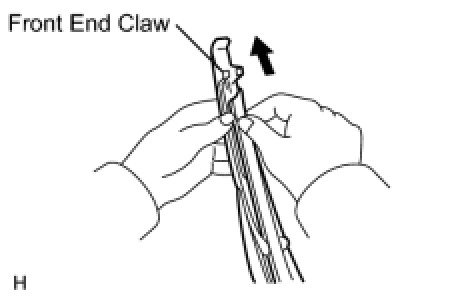

(d) Slide the wiper rubber through the front end claw.
2. INSTALL REAR WIPER BLADE ASSEMBLY

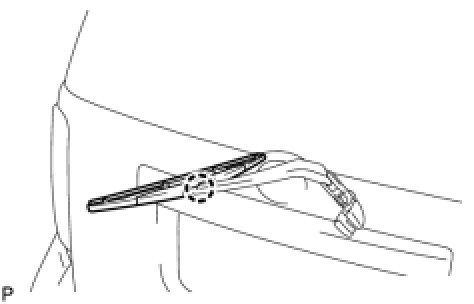

(a) Push the wiper blade straight toward the right side of the vehicle to install onto the wiper arm.
NOTICE: Be careful not to damage the claw





(b) Close the rear wiper arm head cap.
