Removal

WIPER AND WASHER: FRONT WIPER RUBBER: REMOVAL

REMOVAL

1. REMOVE FRONT WIPER BLADE

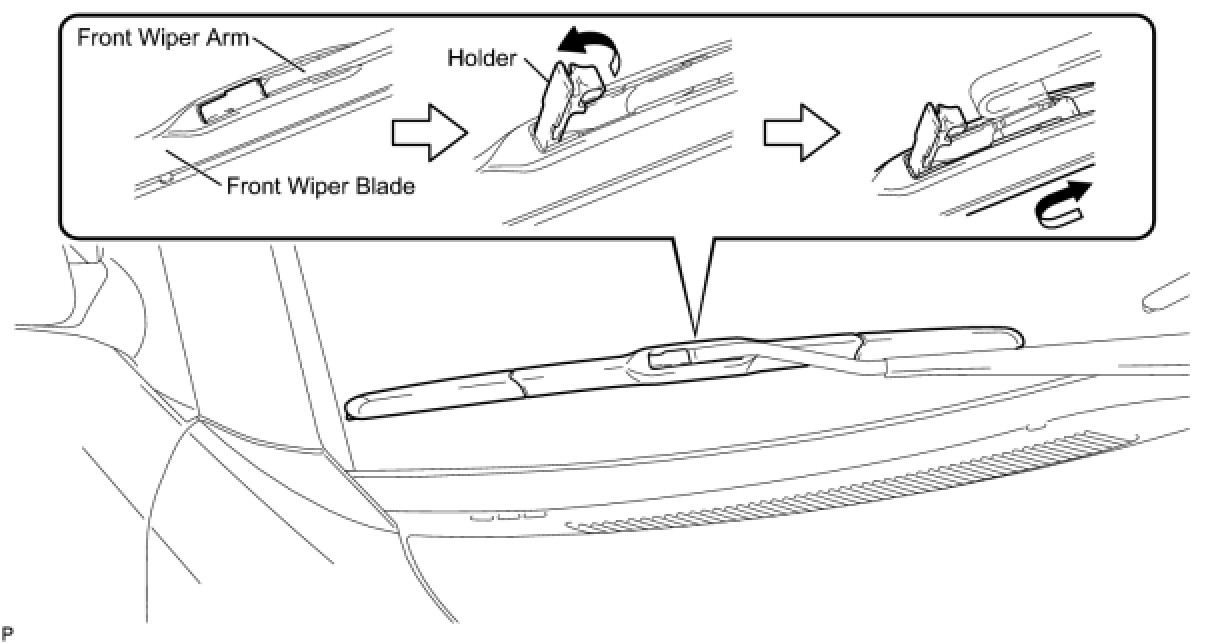

(a) Disengage the front wiper blade holder.
(b) Remove the front wiper blade from the front wiper arm as shown in the illustration.




NOTICE: Do not bend the front wiper arm with the front wiper blade removed because the arm tip could damage the windshield surface.

2. REMOVE WIPER RUBBER





(a) Remove the wiper rubber and the wiper rubber backing plates from the front wiper blade.





(b) Remove the 2 wiper rubber backing plates from the wiper rubber.
