Home >> Scion >> 2009 >> xB L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Wiper and Washer Systems >> Specifications

Wiper and Washer Systems: Specifications

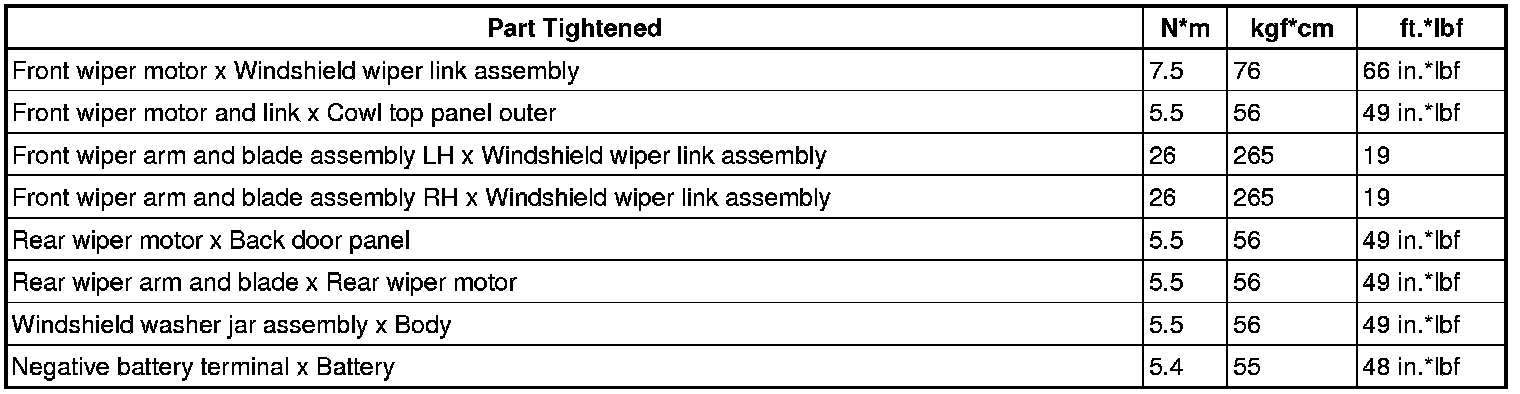

SERVICE SPECIFICATIONS: WIPER AND WASHER: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS
