Installation

WINDSHIELD / WINDOWGLASS: POWER WINDOW REGULATOR MOTOR: INSTALLATION

INSTALLATION





1. INSTALL REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY
(a) Apply MP grease to the sliding and rotating areas of the regulator motor.
(b) Using "TORX" socket wrench T25, install the power window regulator motor assembly front with the 3 screws.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
2. INSTALL REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY Reassembly
3. INSTALL REAR DOOR GLASS SUB-ASSEMBLY Reassembly
4. INSTALL REAR DOOR QUARTER WINDOW WEATHERSTRIP Reassembly
5. INSTALL REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY

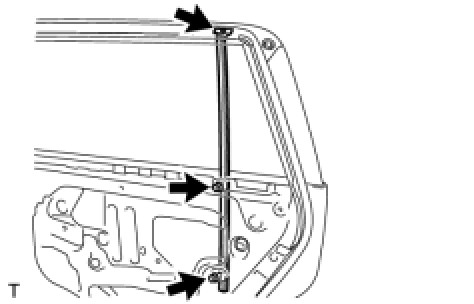

(a) Install the rear door window division bar with the 2 bolts and screw.
Torque: 6.2 Nm (63 kgf-cm, 54 in-lbf)

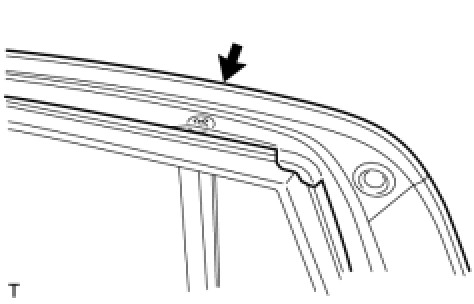

(b) Install the rear door weatherstrip.
6. INSTALL REAR DOOR GLASS RUN Reassembly
7. INSTALL REAR DOOR SERVICE HOLE COVER Reassembly
8. INSTALL REAR DOOR TRIM BRACKET Reassembly
9. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY Reassembly
10. INSTALL REAR DOOR INSIDE HANDLE BEZEL Reassembly
11. INSTALL REAR DOOR ARMREST BASE UPPER PANEL Reassembly





12. INSTALL FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY
(a) Apply MP grease to the sliding and rotating areas of the regulator motor.
(b) Using "TORX" socket wrench T25, install the power window regulator motor assembly front with the 3 screws.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
13. INSTALL FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY Reassembly
14. INSTALL FRONT DOOR GLASS SUB-ASSEMBLY Reassembly
15. INSTALL FRONT DOOR SERVICE HOLE COVER Reassembly
16. INSTALL FRONT DOOR TRIM BRACKET Reassembly
17. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY Reassembly
18. INSTALL FRONT DOOR INSIDE HANDLE BEZEL Reassembly
19. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH Reassembly
20. INSTALL FRONT ARMREST BASE UPPER PANEL Reassembly
21. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
