Heated Glass Element: Description and Operation

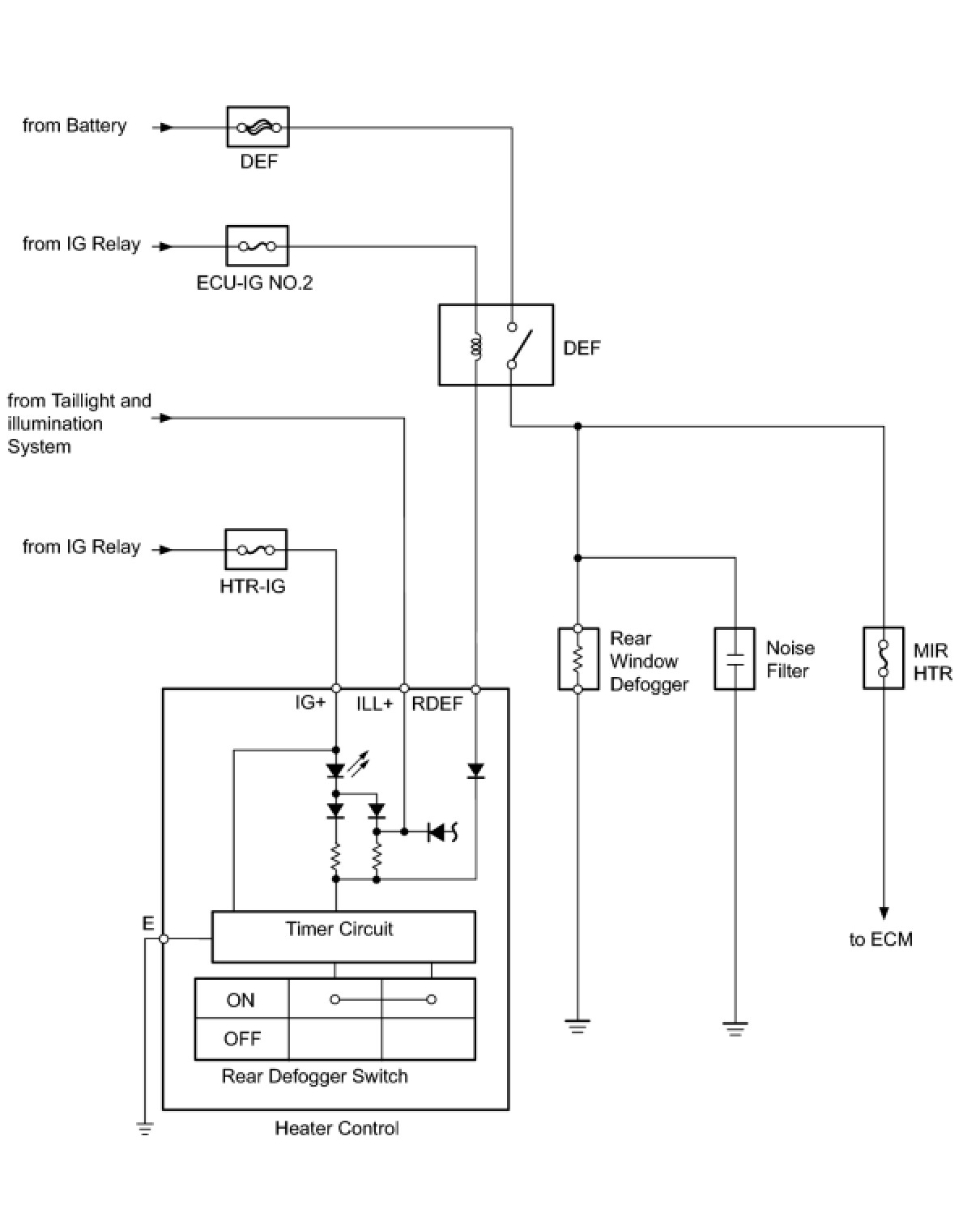

WINDSHIELD / WINDOWGLASS: WINDOW DEFOGGER SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM






WINDSHIELD / WINDOWGLASS: WINDOW DEFOGGER SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. GENERAL
The defogger system's thin heater wires are attached to the inside of the rear window and defog the window surface quickly. The indicator light illuminates while the system is operating. The system automatically turns off after approximately 15 minutes.

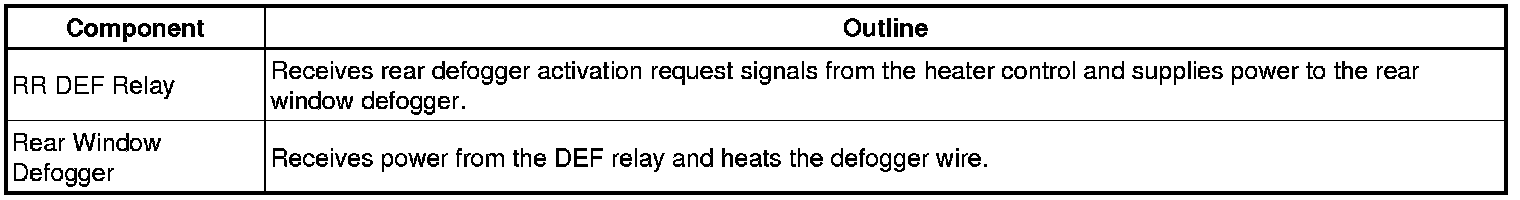

2. FUNCTION OF MAIN COMPONENT
