Reassembly

U241E AUTOMATIC TRANSAXLE: VALVE BODY ASSEMBLY: REASSEMBLY

REASSEMBLY

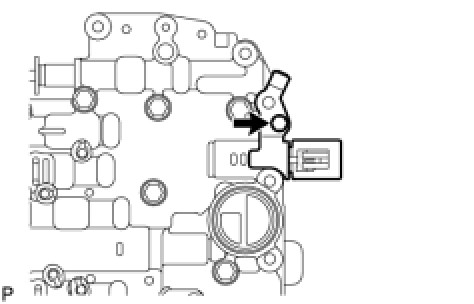

1. INSTALL SHIFT SOLENOID VALVE S4





(a) Coat the shift solenoid valve S4 with ATF, and install it into the transmission valve body assembly with the bolt.
Torque: 11 Nm (110 kgf-cm, 8 ft-lbf)

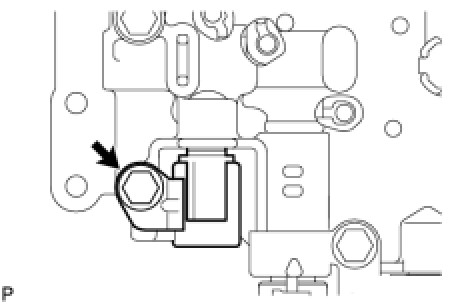

2. INSTALL SHIFT SOLENOID VALVE DSL





(a) Coat the shift solenoid valve DSL with ATF, and install it into the transmission valve body assembly with the bolt.
Torque: 11 Nm (110 kgf-cm, 8 ft-lbf)

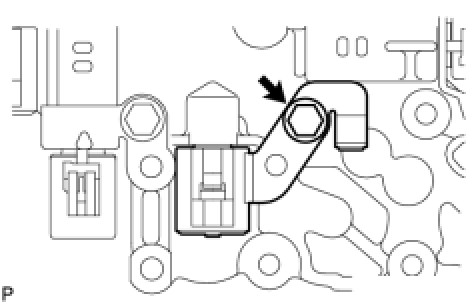

3. INSTALL SHIFT SOLENOID VALVE SLT





(a) Coat the shift solenoid valve SLT with ATF, and install it into the transmission valve body assembly.
(b) Install the No. 3 solenoid lock plate onto the transmission valve body assembly.
Torque: 6.6 Nm (67 kgf-cm, 58 in-lbf)

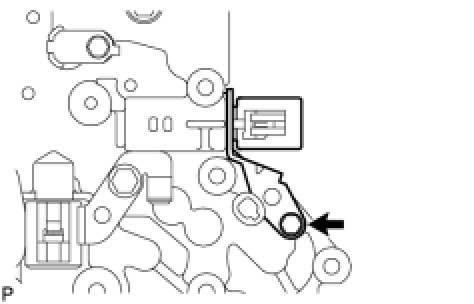

4. INSTALL SHIFT SOLENOID VALVE SL2





(a) Coat the shift solenoid valve SL2 with ATF, and install it into the transmission valve body assembly.
(b) Install the No. 2 solenoid lock plate onto the transmission valve body assembly.
Torque: 11 Nm (110 kgf-cm, 8 ft-lbf)

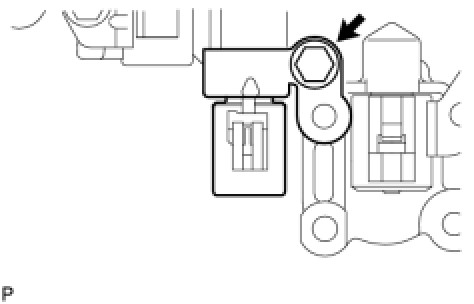

5. INSTALL SHIFT SOLENOID VALVE SL1





(a) Coat the shift solenoid valve SL1 with ATF, and install it into the transmission valve body assembly.
(b) Install the No. 1 solenoid lock plate onto the transmission valve body assembly.
Torque: 6.6 Nm (67 kgf-cm, 58 in-lbf)
6. INSTALL MANUAL VALVE
(a) Coat the manual valve with ATF, and install it into the transmission valve body assembly.
