Home >> Scion >> 2009 >> xB L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Tools and Equipment >> SST

SST

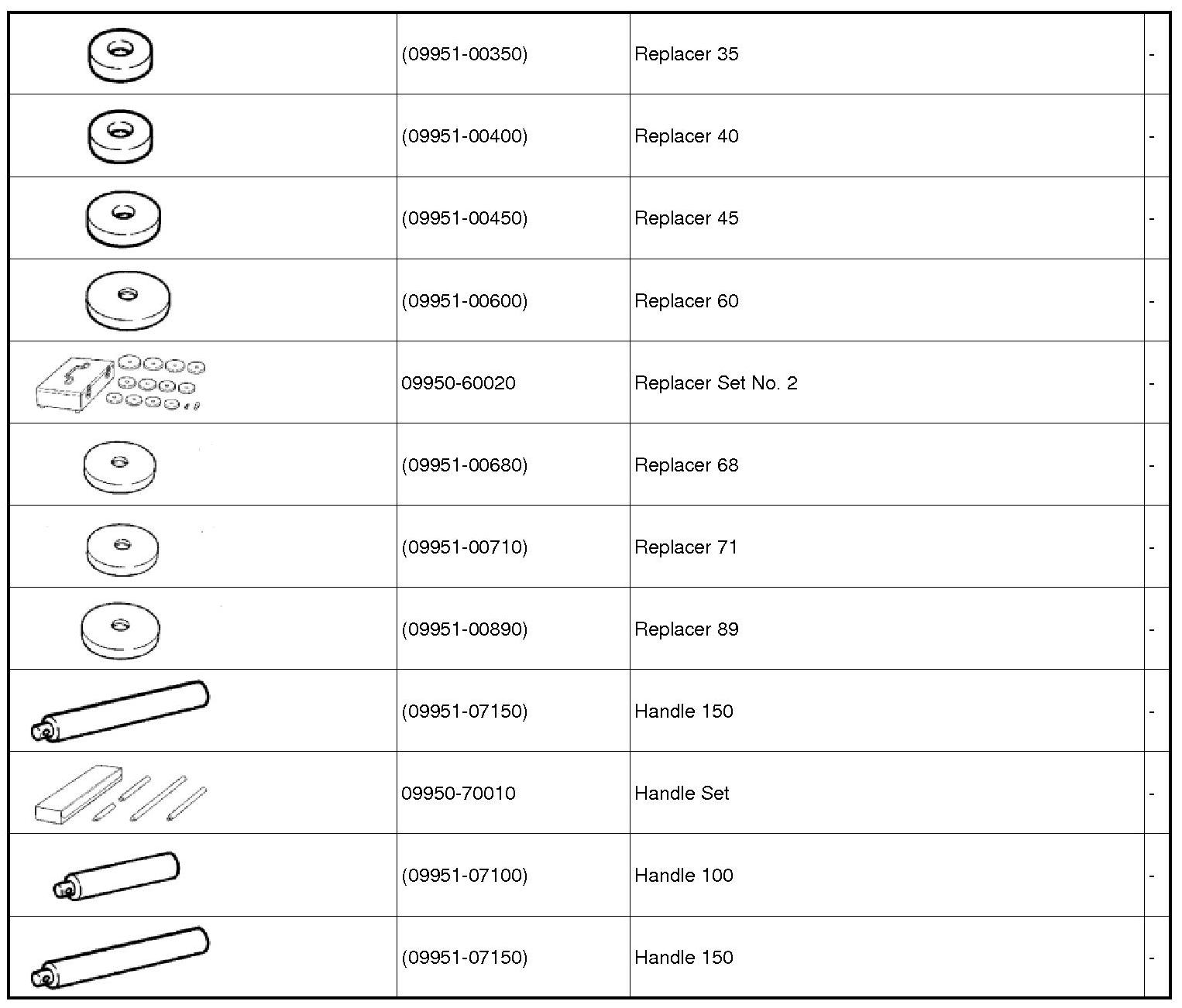

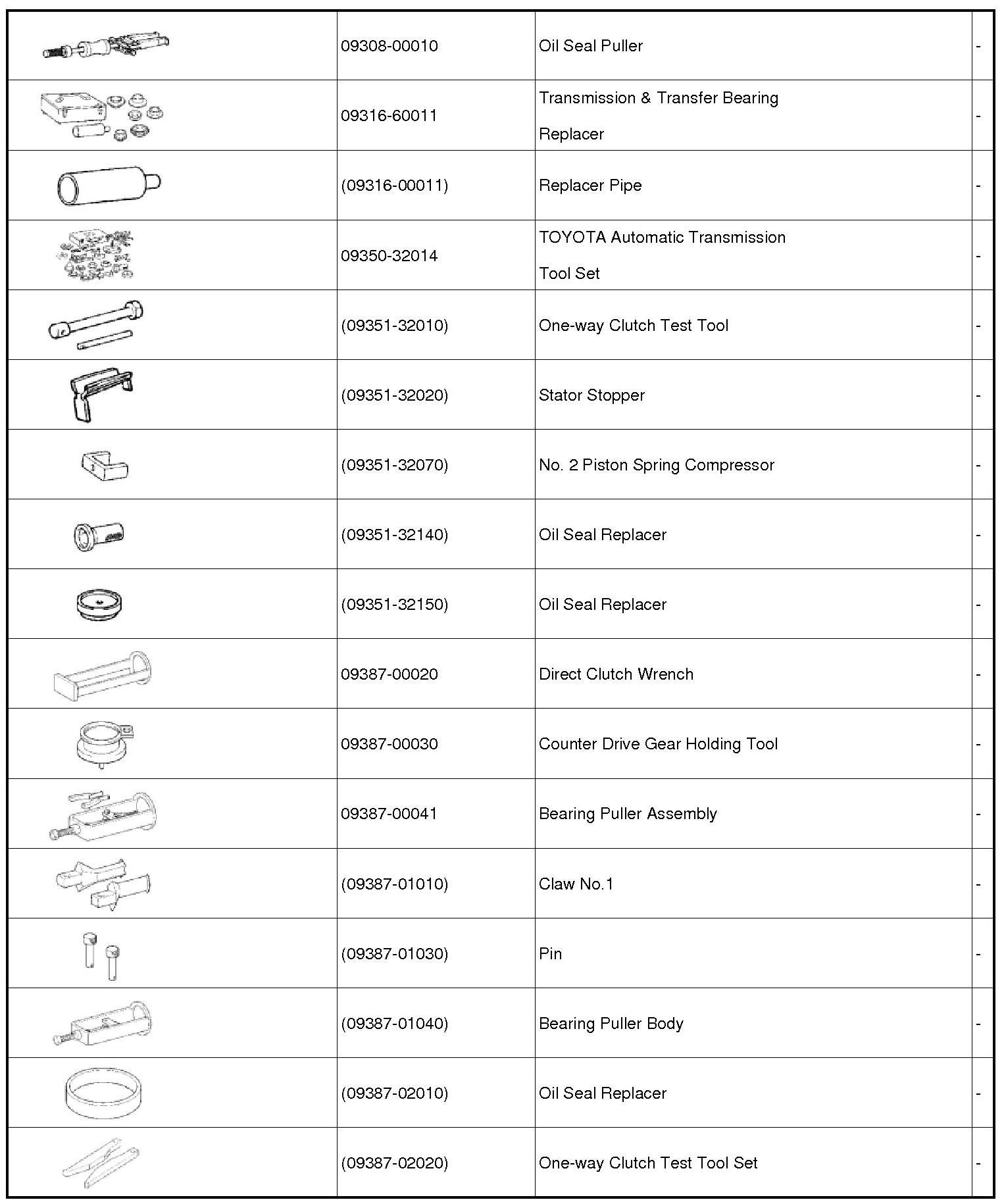

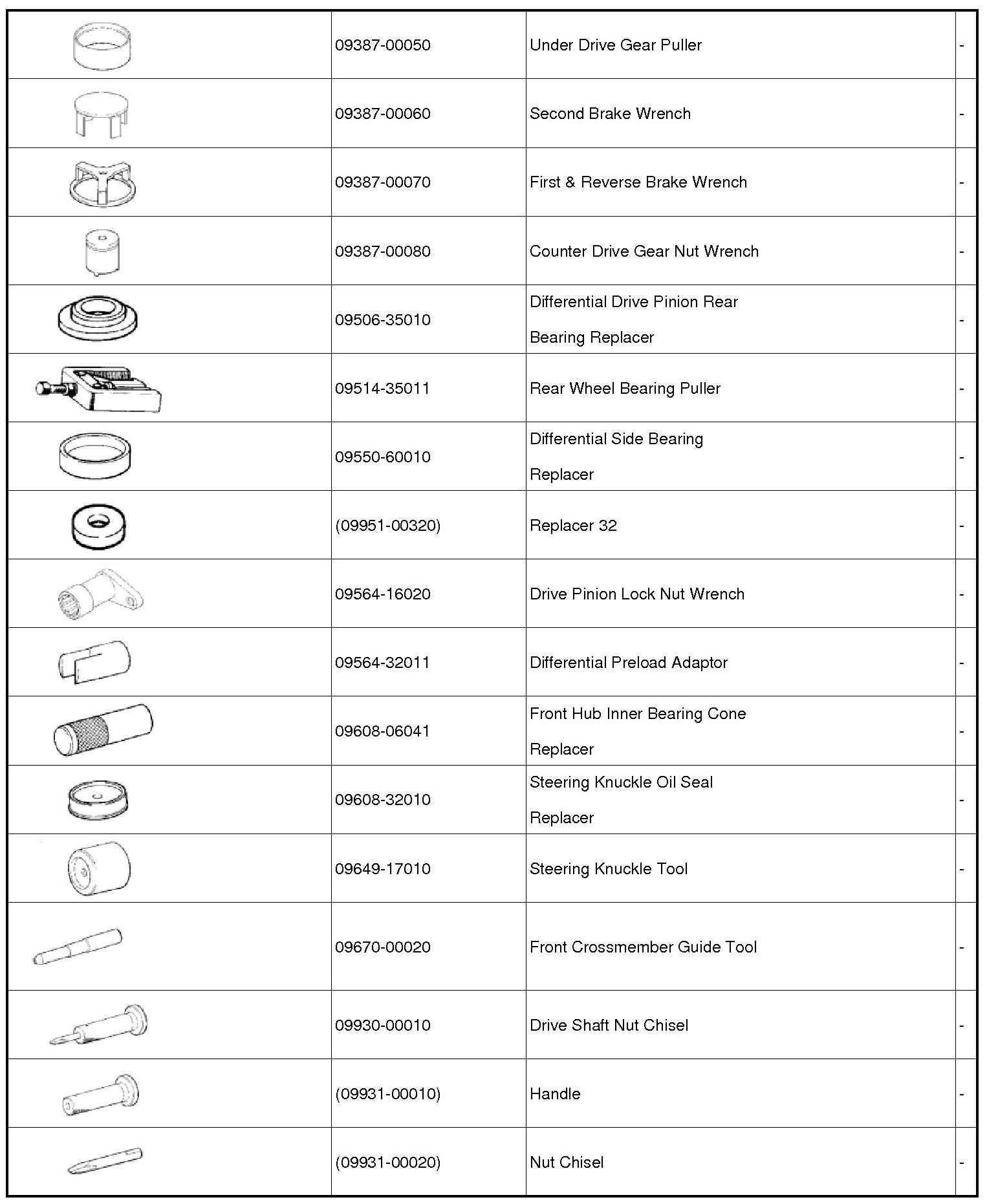

PREPARATION: U241E AUTOMATIC TRANSAXLE: SST

SST
