Forward Clutch

U241E AUTOMATIC TRANSAXLE: FORWARD CLUTCH: INSPECTION

INSPECTION

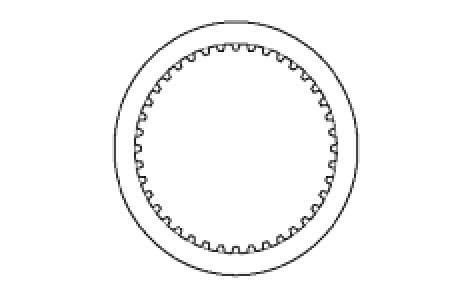

1. INSPECT FORWARD MULTIPLE DISC CLUTCH DISC





(a) Check to see if the sliding surface of the disc, plate and flange are worn or burnt.
If necessary, replace them.

NOTICE:
- If the lining of the disc is peeling off or discolored, replace all discs.
- Before assembling new discs, soak them in ATF for at least 15 minutes.

2. INSPECT FORWARD CLUTCH RETURN SPRING SUB-ASSEMBLY

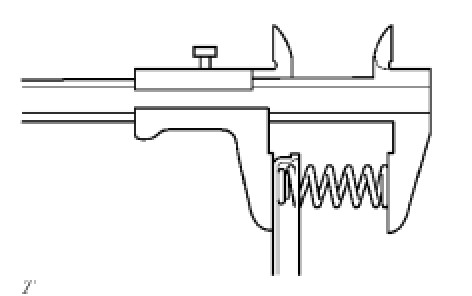

(a) Using vernier calipers, measure the free length of the spring together with the spring seat.
Standard free length:
28.23 mm (1.1114 in.)
3. INSPECT FORWARD CLUTCH PISTON SUB-ASSEMBLY

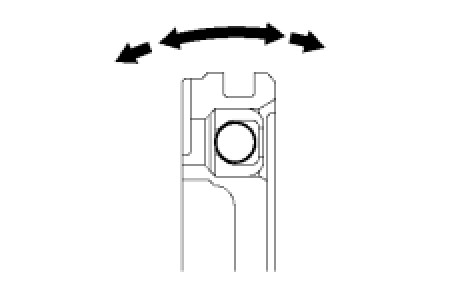

(a) Shake the piston to check that the check ball is not stuck.





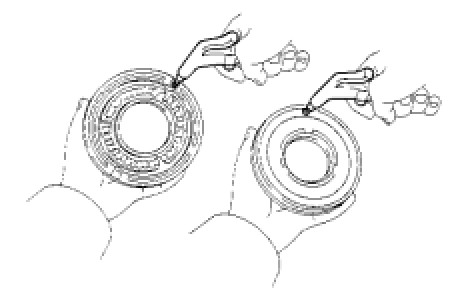

(b) Check that the value does not leak when applying low pressure compressed air (392 kPa, 4.0 kgf/cm2, 57 psi).
