Electrical Specifications
SERVICE SPECIFICATIONS: U241E AUTOMATIC TRANSAXLE: SERVICE DATA
SERVICE DATA

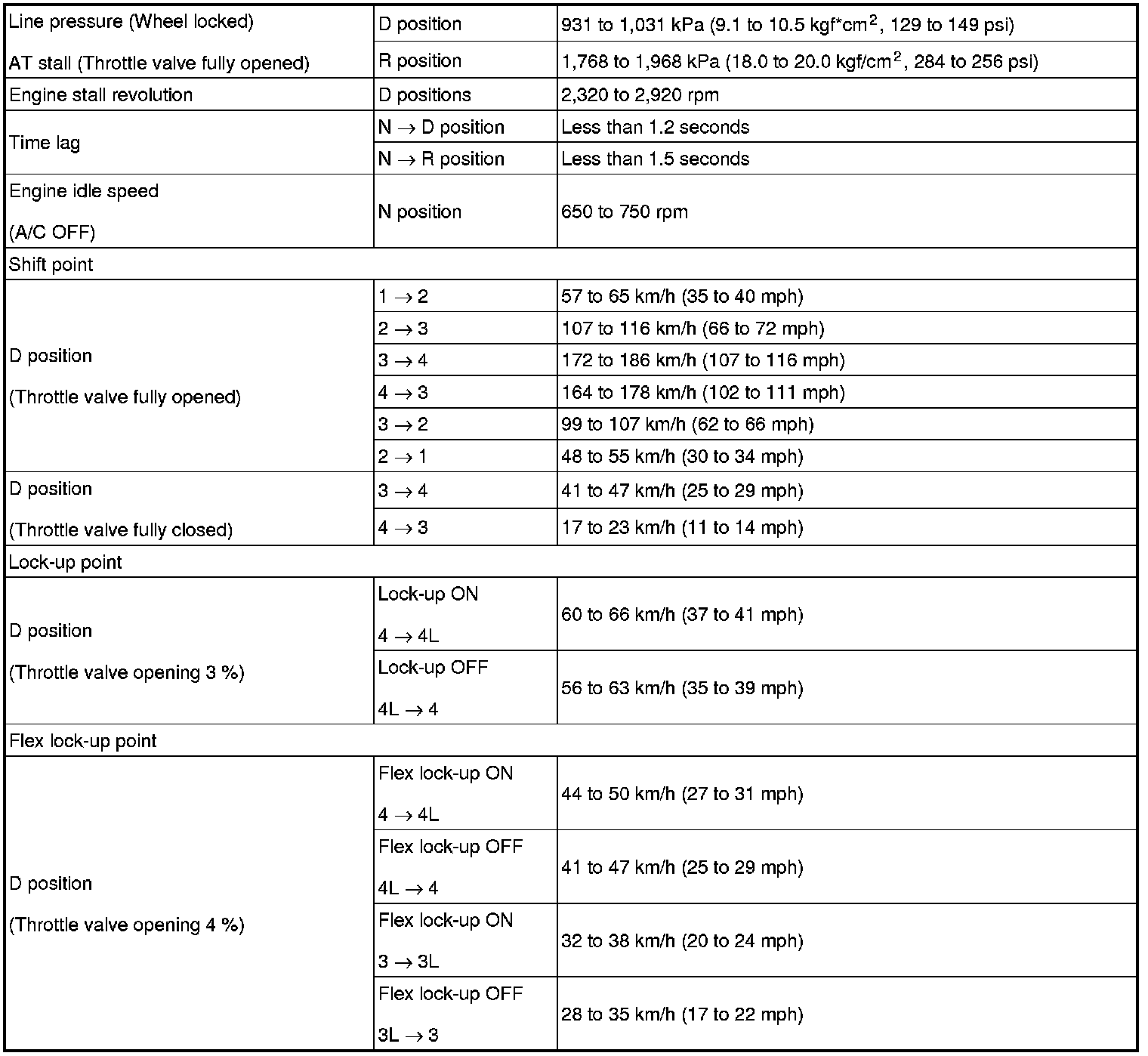

AUTOMATIC TRANSAXLE SYSTEM

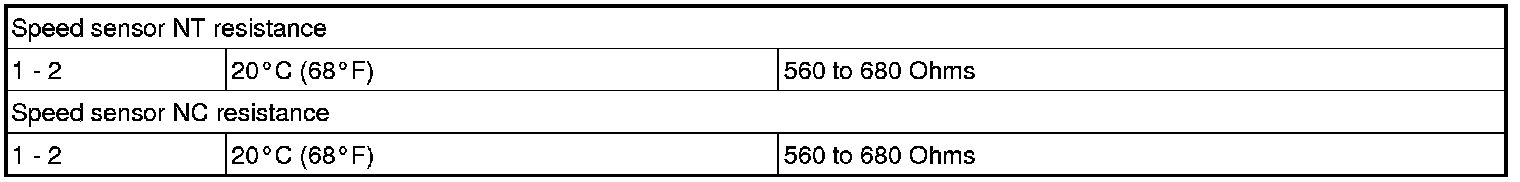

SPEED SENSOR

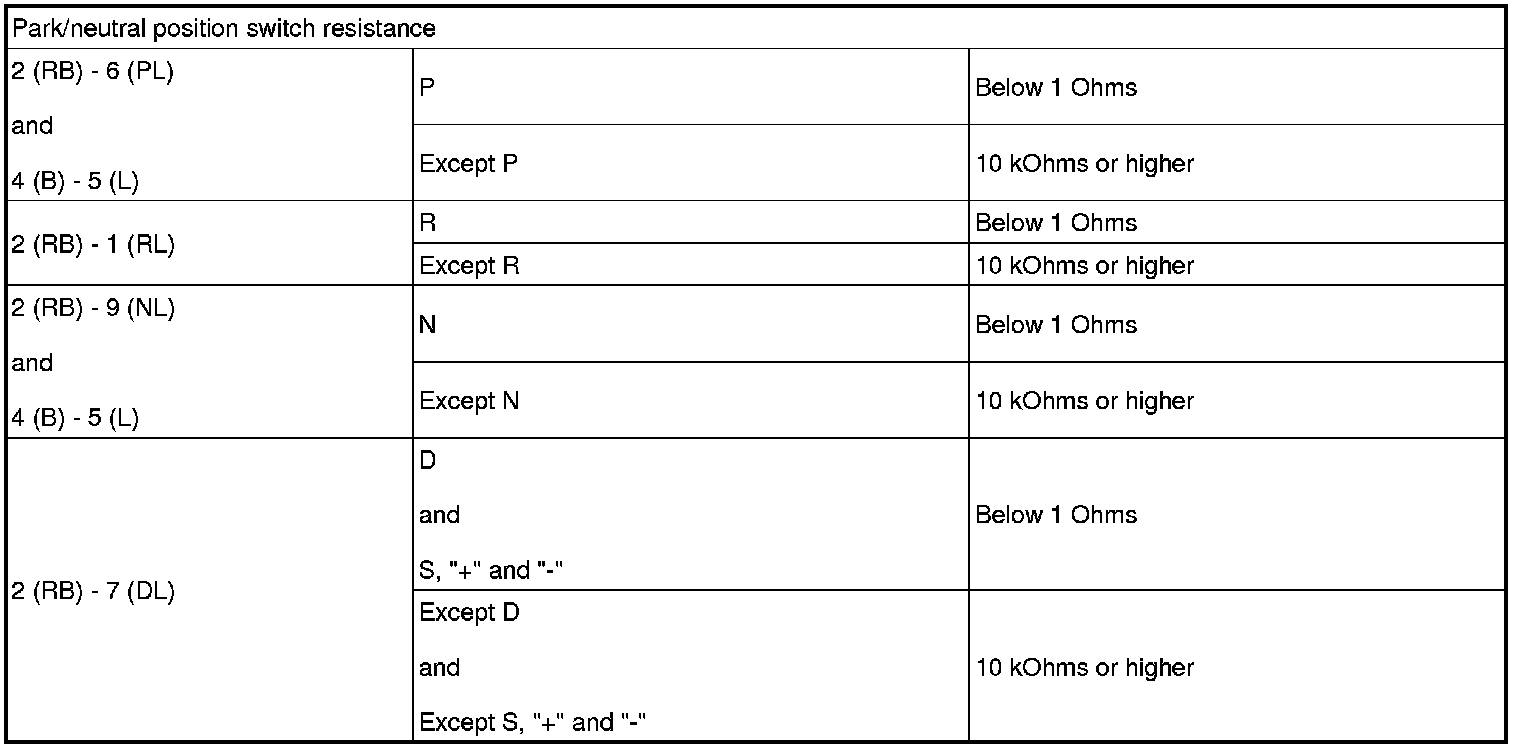

PARK / NEUTRAL POSITION SWITCH

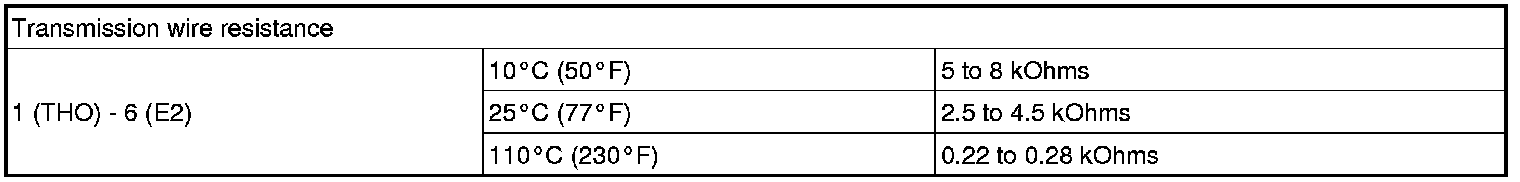

TRANSMISSION WIRE

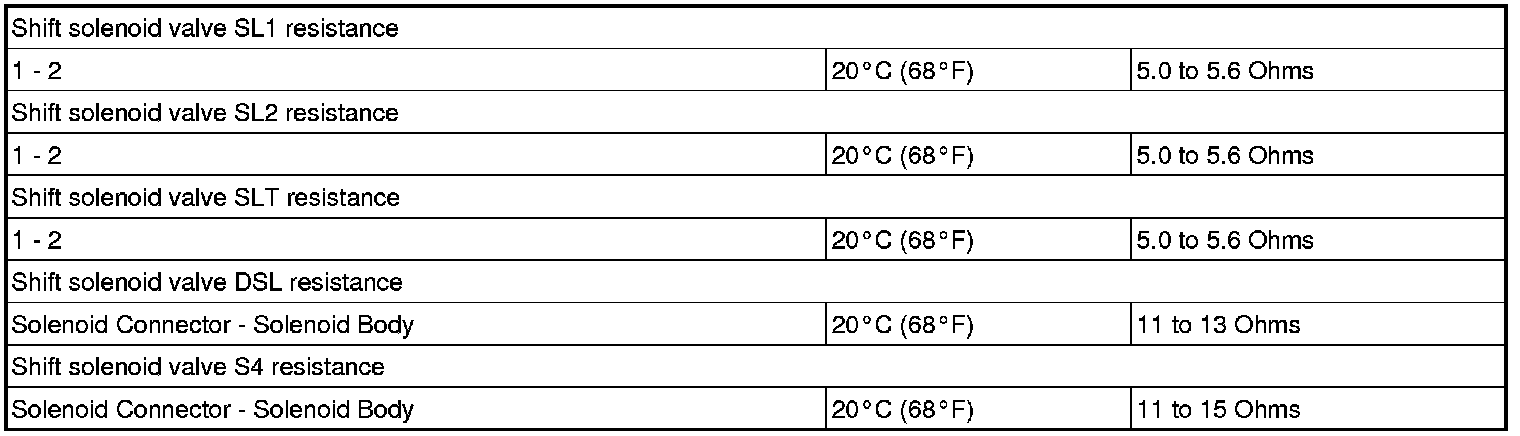

VALVE BODY ASSEMBLY

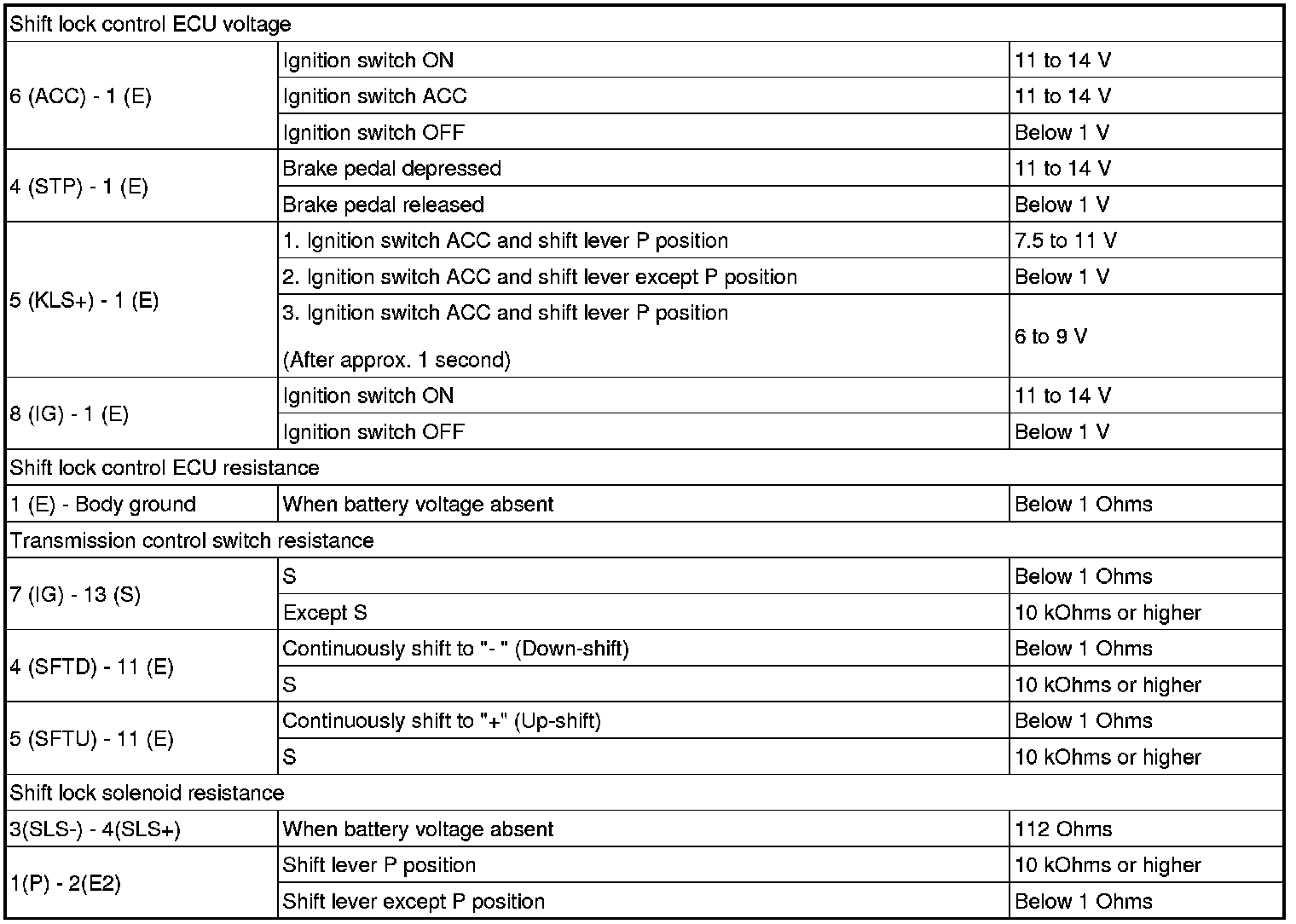

SHIFT LEVER
DIFFERENTIAL OIL SEAL
TORQUE CONVERTER AND DRIVE PLATE

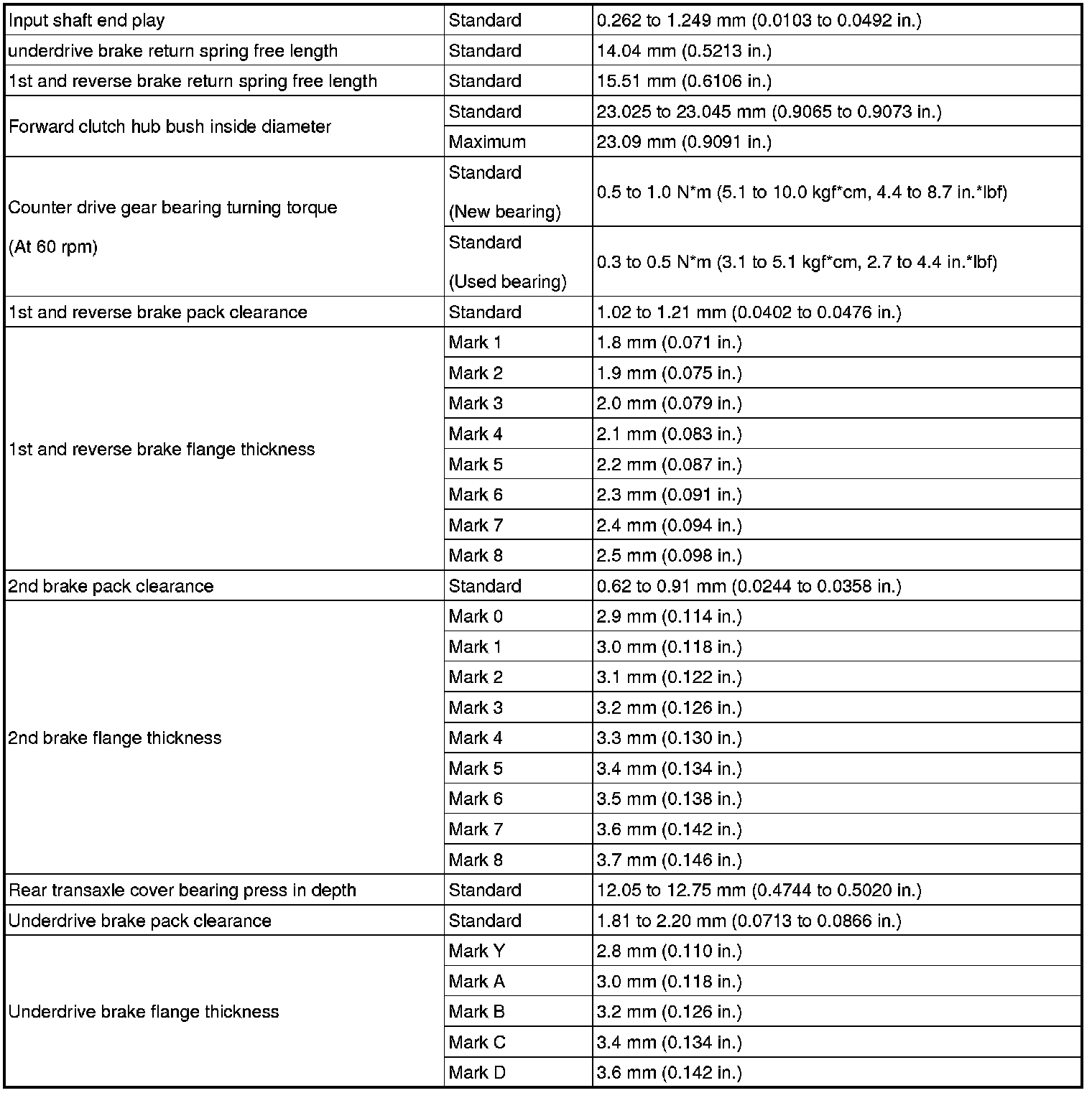

AUTOMATIC TRANSAXLE UNIT

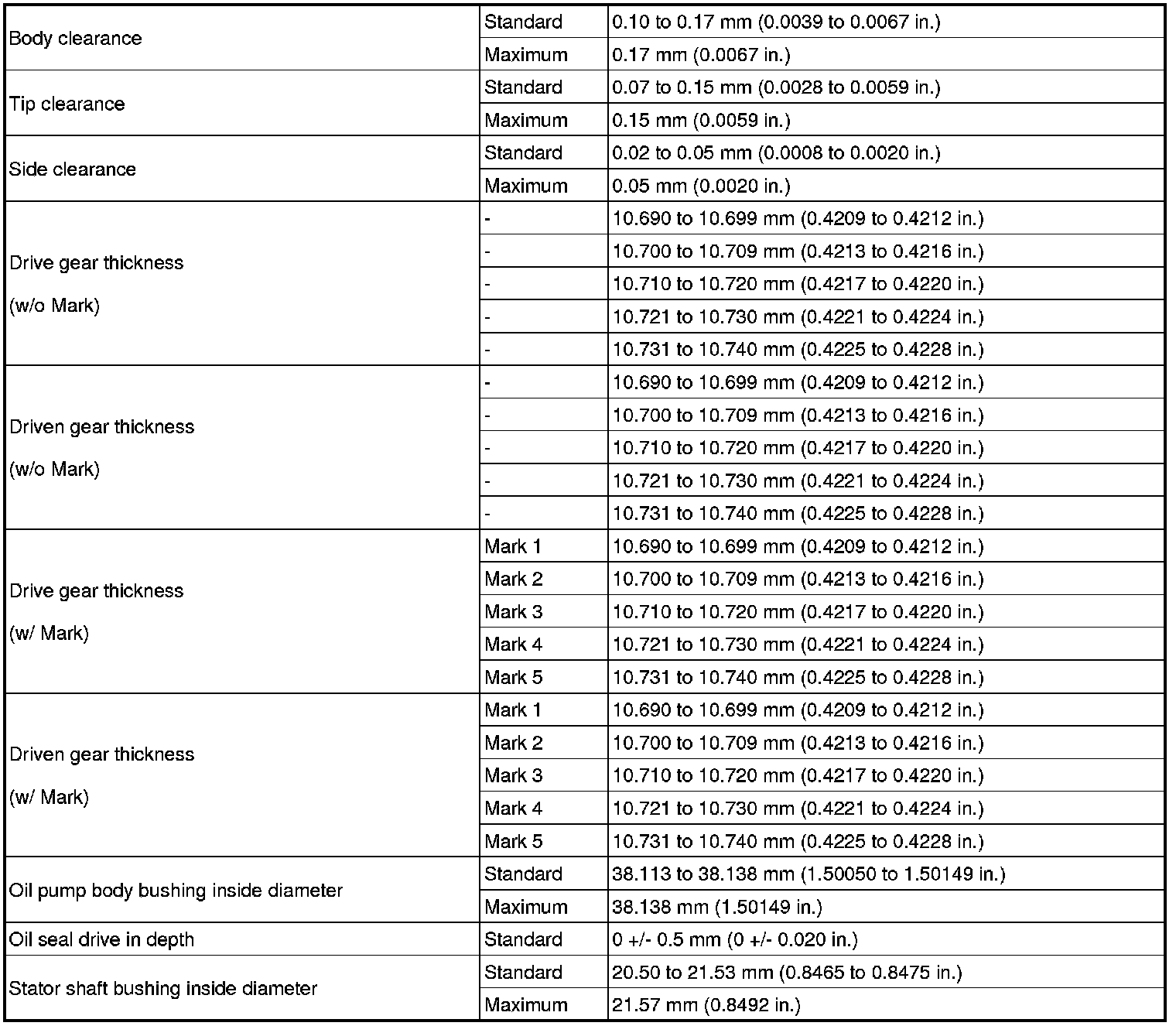

OIL PUMP
SECOND BRAKE PISTON
FORWARD CLUTCH

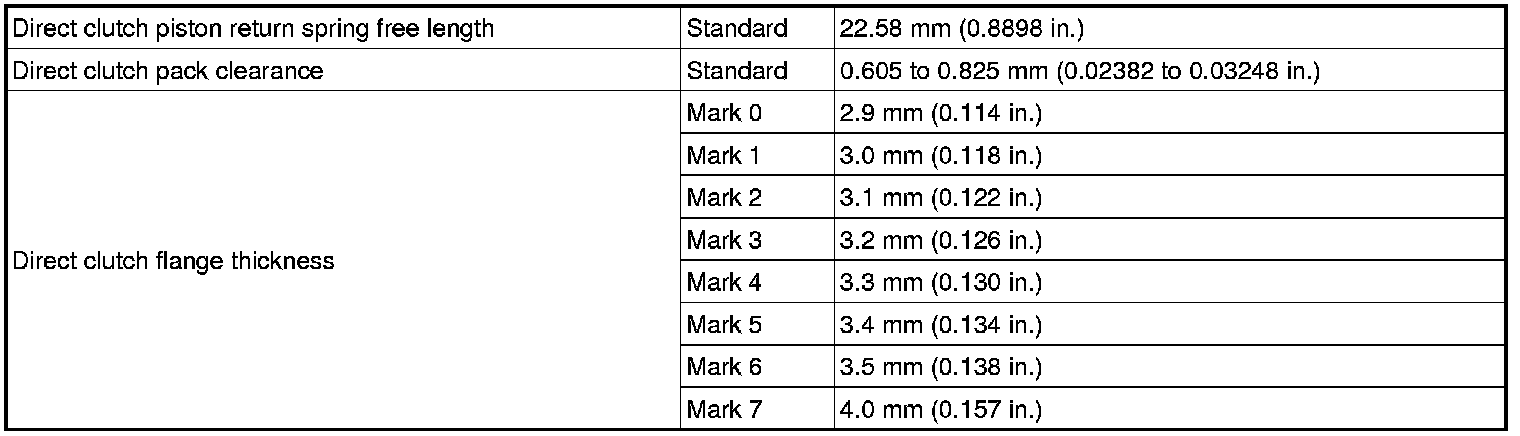

DIRECT CLUTCH

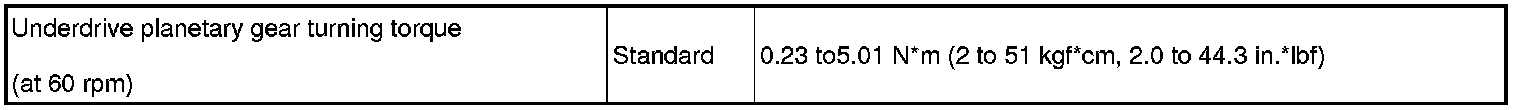

UNDERDRIVE PLANETARY GEAR

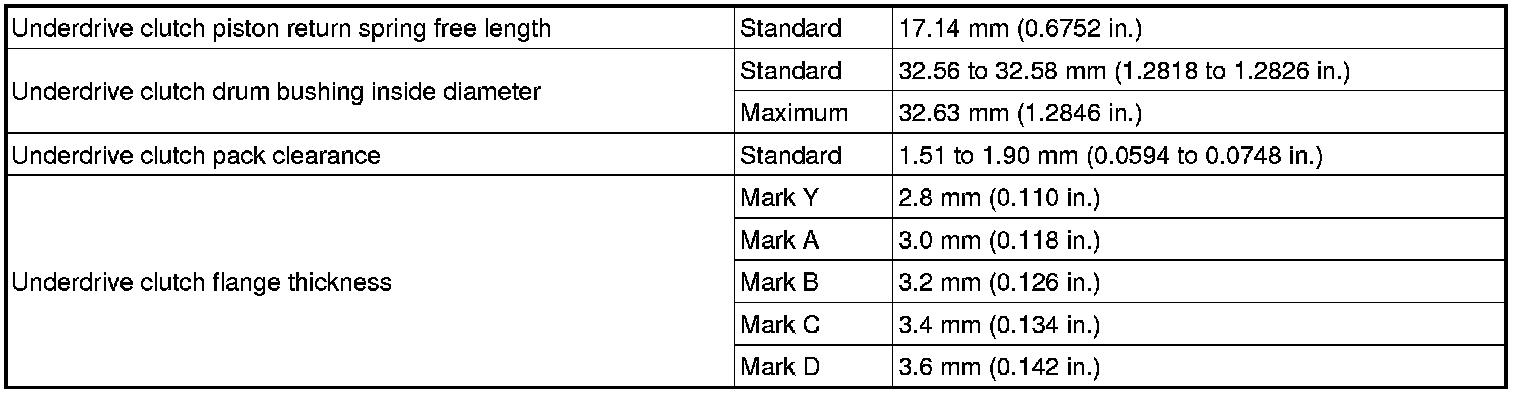

UNDERDRIVE CLUTCH

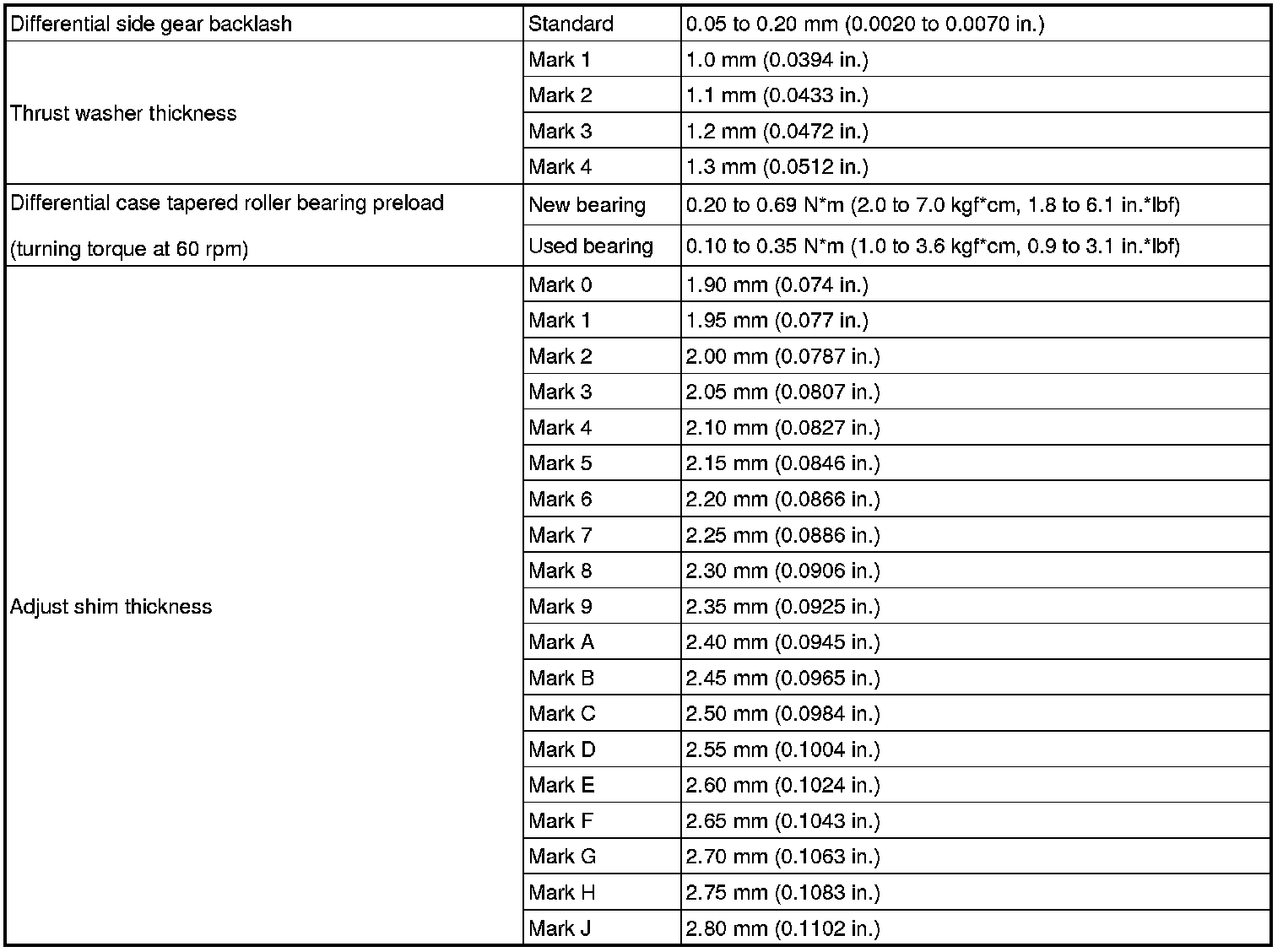

DIFFERENTIAL
