Disassembly

U241E AUTOMATIC TRANSAXLE: SECOND BRAKE PISTON: DISASSEMBLY

DISASSEMBLY

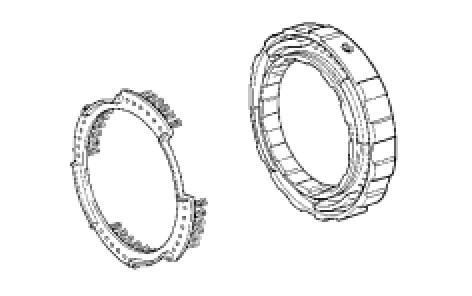

1. REMOVE 2ND BRAKE PISTON RETURN SPRING SUB-ASSEMBLY





(a) Place SST on the return spring and compress.
SST: 09387-00060
(b) Using a screwdriver, pry out the snap ring.





(c) Remove the piston return spring.
2. REMOVE 2ND BRAKE PISTON

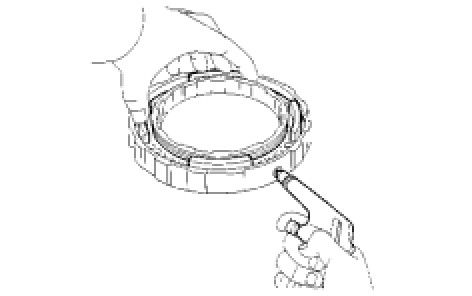

(a) Apply compressed air (392 kPa, 4.0 kgf/cm2, 57 psi) to the oil hole and remove the 2nd brake piston.

NOTICE:
- Applying the air may cause the piston to jump out. When removing the piston, hold it using a piece of cloth.
- Do not splash ATF with the compressed air.

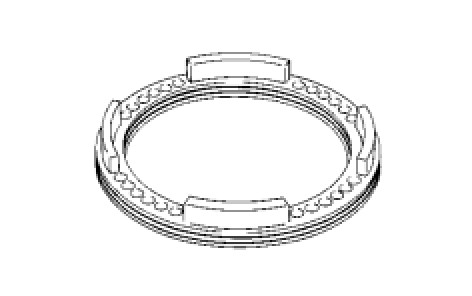

3. REMOVE 2ND BRAKE PISTON O-RING





(a) Remove the 2 O-rings from the 2nd brake piston.
