Steering Column: Testing and Inspection

STEERING COLUMN: STEERING COLUMN ASSEMBLY: INSPECTION

INSPECTION

1. INSPECT PRELOAD
(a) Secure the steering column assembly in a vise.

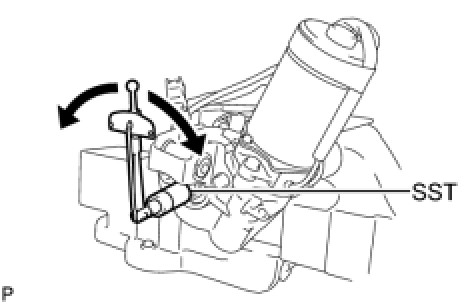

(b) Using SST, turn the main shaft and measure the preload.
SST: 09616-00011
Preload - Torque: 0.6 to 1.2 Nm (6.1 to 12.2 kgf-cm, 5.3 to 10.6 in-lbf)
If the preload is not as specified, replace the steering column assembly.
2. INSPECT STEERING LOCK OPERATION





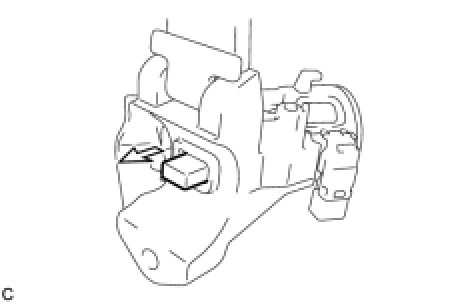

(a) Check that the steering lock mechanism is activated when the key is removed.





(b) Check that the steering lock mechanism is deactivated when the key is inserted and turned to the ACC position.
HINT: If there is any abnormality, replace the ignition switch lock cylinder assembly or steering column upper bracket assembly.
