Removal

2AZ-FE STARTING: STARTER: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

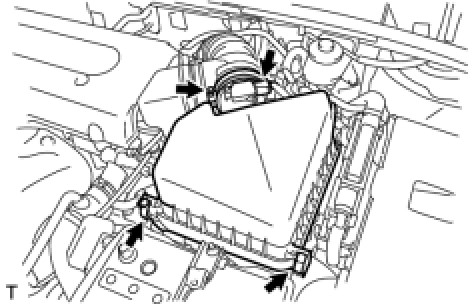

2. REMOVE AIR CLEANER CAP SUB-ASSEMBLY

(a) Disconnect the mass air flow meter connector.
(b) Loosen the hose clamp, unlock the air cleaner assembly clamp and remove the air cleaner cap sub-assembly.

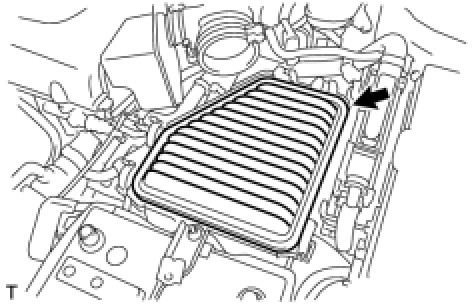

3. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

(a) Remove the air cleaner filter element sub-assembly from the air cleaner case sub-assembly.

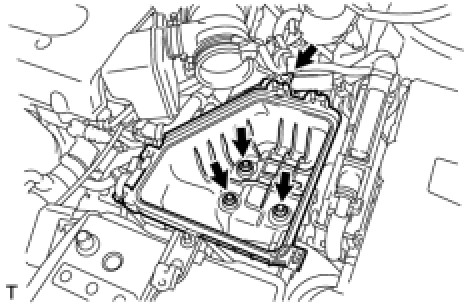

4. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

(a) Separate the wire harness clamp from the air cleaner case sub-assembly.
(b) Remove the 3 bolts and remove the air cleaner case sub-assembly.
5. REMOVE STARTER ASSEMBLY (for Manual Transaxle)

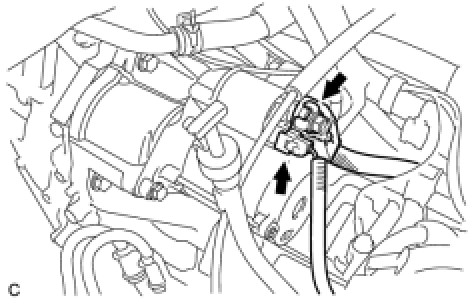

(a) Disconnect the terminal 50 connector from the starter assembly.
(b) Remove the nut and disconnect the wire harness from terminal 30.

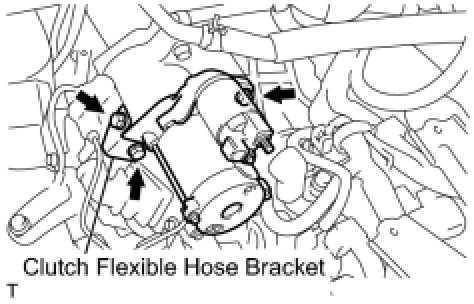

(c) Remove the 3 bolts, clutch flexible hose bracket and starter assembly.

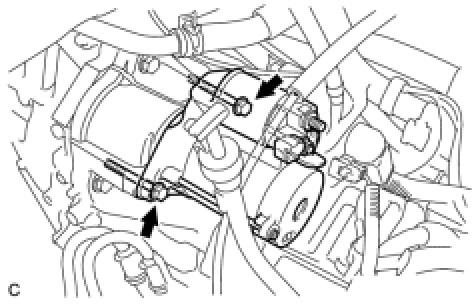

6. REMOVE STARTER ASSEMBLY (for Automatic Transaxle)

(a) Disconnect the terminal 50 connector from the starter assembly.
(b) Remove the nut and disconnect the wire harness from terminal 30.
