Scion
>>
2009
>>
xB L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Locations
Starting System: Locations

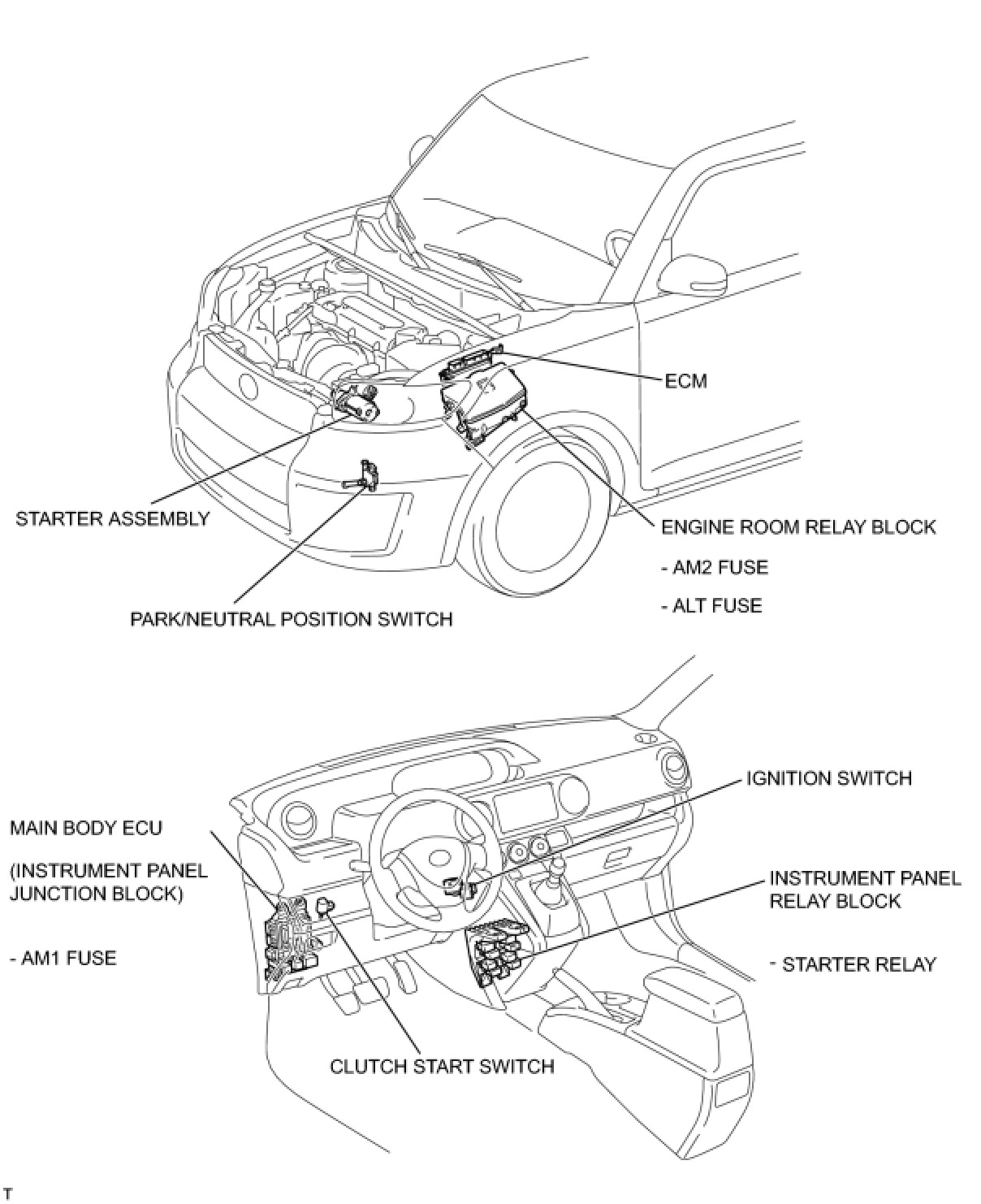

2AZ-FE STARTING: STARTING SYSTEM: PARTS LOCATION
PARTS LOCATION
