Torque Specifications








SERVICE SPECIFICATIONS: AIR CONDITIONING: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS





AIR CONDITIONING UNIT





COMPRESSOR

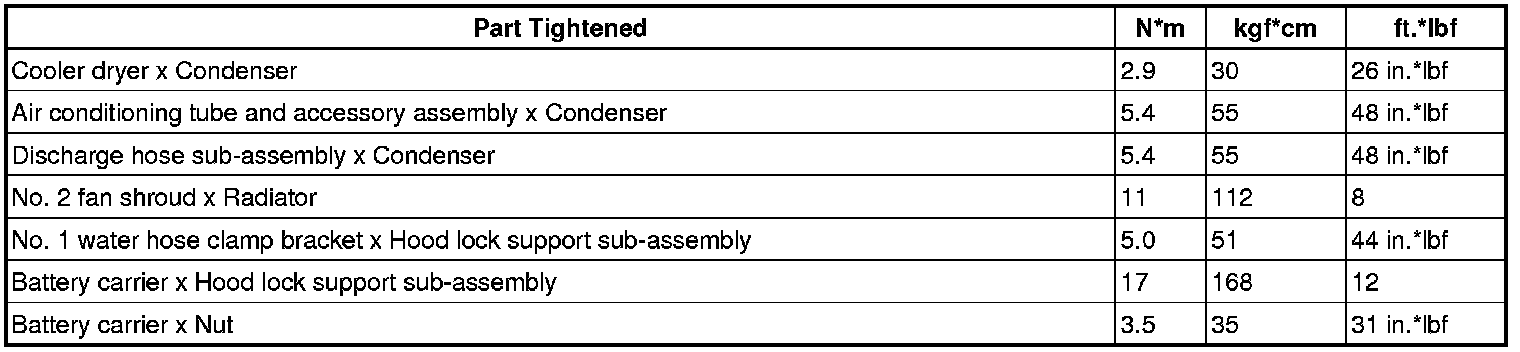

CONDENSER
