Flywheel/Flex Plate

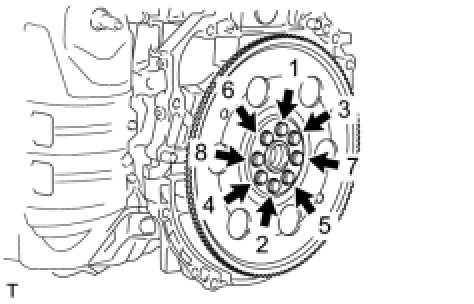

DRIVE PLATE





In several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration.
Torque: 98 Nm (999 kgf-cm, 72 ft-lbf)

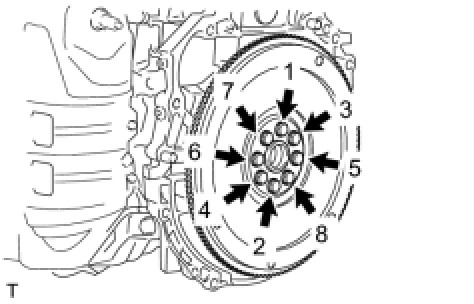

FLYWHEEL





In several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration.
Torque: 130 Nm (1326 kgf-cm, 96 ft-lbf)
