WIPER AND WASHER: WIPER SWITCH: INSTALLATION

INSTALLATION

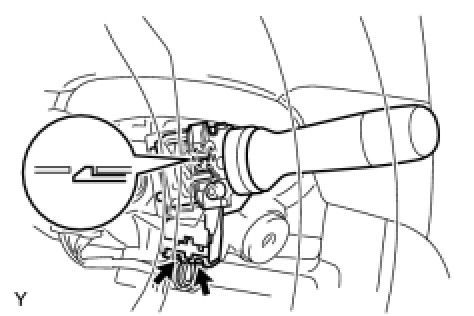

1. INSTALL WIPER SWITCH
(a) Engage the claw and install the windshield wiper switch.
(b) Connect the 2 connectors.
2. INSTALL STEERING COLUMN COVER Installation
3. ADJUST SPIRAL CABLE Installation
4. INSTALL STEERING WHEEL ASSEMBLY Installation
5. INSTALL STEERING PAD Installation
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
7. INSPECT SRS WARNING LIGHT
Diagnosis System.
