Installation








LIGHTING: HAZARD WARNING SWITCH: INSTALLATION

INSTALLATION





1. INSTALL HAZARD WARNING SWITCH

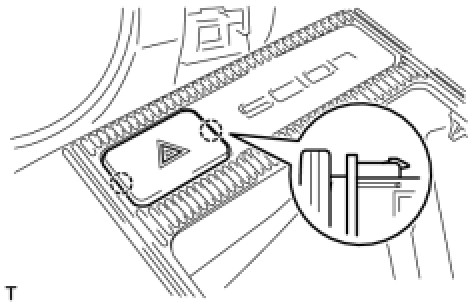

(a) Engage the 2 claws and install the hazard warning signal switch.
2. INSTALL INSTRUMENT CLUSTER FINISH CENTER LOWER PANEL Installation
3. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Installation
