Installation

CRUISE CONTROL: CLUTCH SWITCH: INSTALLATION

INSTALLATION

1. INSTALL CLUTCH SWITCH ASSEMBLY

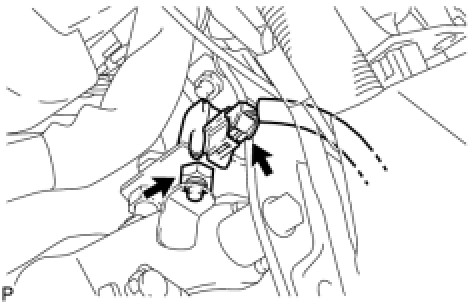

(a) Install the clutch switch to the clutch pedal support with the nut.
Torque: 16 Nm (160 kgf-cm, 12 ft-lbf)
(b) Connect the connector.
