Seat Belt: Testing and Inspection

SEAT BELT: FRONT SEAT INNER BELT ASSEMBLY: INSPECTION

INSPECTION

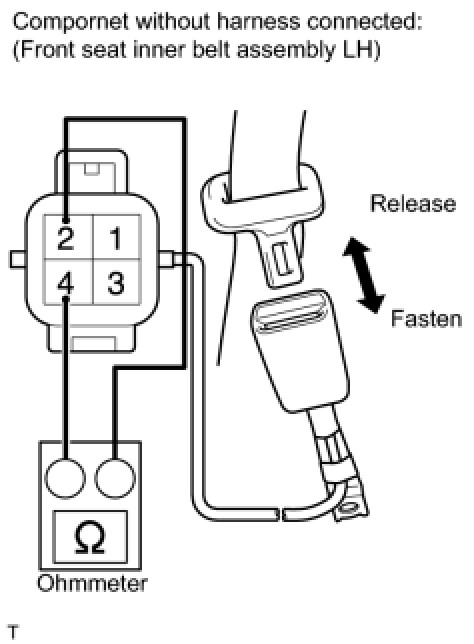

1. INSPECT FRONT SEAT INNER BELT ASSEMBLY LH

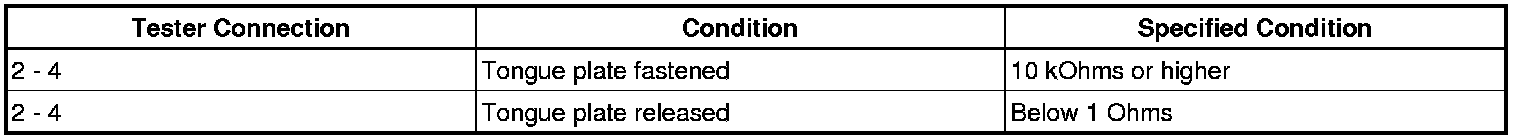

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, replace the front seat inner belt.

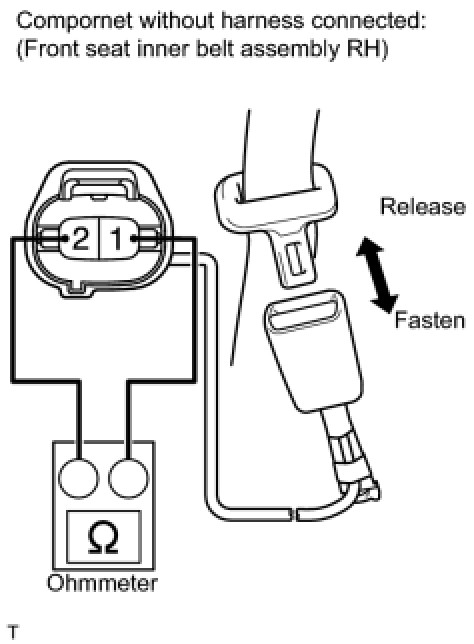

2. INSPECT FRONT SEAT INNER BELT ASSEMBLY RH





(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, replace the front seat inner belt.
