SEAT BELT: REAR SEAT OUTER BELT ASSEMBLY: REMOVAL

REMOVAL
HINT: The procedure described below is for the RH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

1. REMOVE REAR FLOOR CARPET ASSEMBLY Removal
2. REMOVE REAR DECK FLOOR BOX Removal
3. REMOVE DECK FLOOR BOX RH Removal
4. REMOVE DECK FLOOR BOX LH Removal
5. REMOVE REAR SEAT CUSHION WITH COVER PAD SUB-ASSEMBLY Removal
6. REMOVE REAR SEATBACK ASSEMBLY RH Removal
7. REMOVE REAR SEATBACK ASSEMBLY LH Removal
8. REMOVE REAR DOOR SCUFF PLATE RH Removal
9. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH Removal
10. REMOVE REAR DECK TRIM COVER Removal
11. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY Removal
12. SEPARATE REAR SEAT OUTER BELT ASSEMBLY RH Removal
13. REMOVE REAR SEAT BACK HINGE SUB-ASSEMBLY
14. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH Removal
15. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH Removal
16. REMOVE REAR SEAT OUTER BELT ASSEMBLY





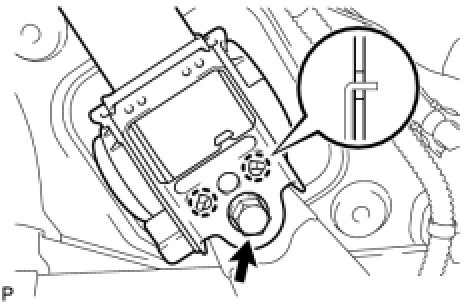

(a) Remove the bolt and the through anchor.

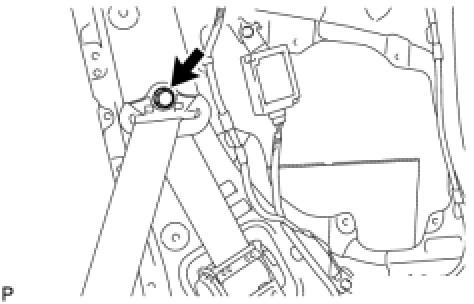

(b) Remove the bolt, the 2 hooks and the retractor.
