SEAT BELT: REAR SEAT INNER BELT ASSEMBLY: REMOVAL

REMOVAL
HINT: The procedure described below is for the RH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

1. REMOVE REAR SEAT INNER BELT ASSEMBLY RH





(a) Hold the front edge of the rear seat cushion cover pad and lift it up, as shown in the illustration, to disengage the 2 hooks.
NOTICE: Hold the area around the hooks so as to avoid deforming the rear seat cushion frame.

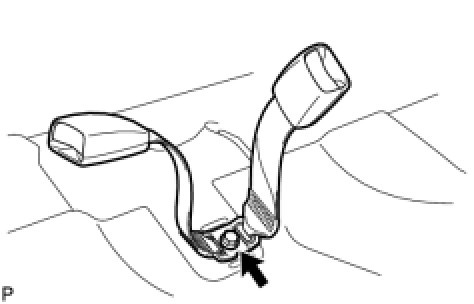

(b) Remove the bolt, washer and rear seat inner belt.
2. REMOVE REAR SEAT INNER BELT ASSEMBLY LH





(a) Remove the bolt and the rear seat inner belt.
