Installation

SEAT BELT: REAR SEAT INNER BELT ASSEMBLY: INSTALLATION

INSTALLATION
HINT: The procedure described below is for the RH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

1. INSTALL REAR SEAT INNER BELT ASSEMBLY LH





(a) Install the rear seat inner belt with the bolt.
Torque: 41 Nm (420 kgf-cm, 30 ft-lbf)

NOTICE:

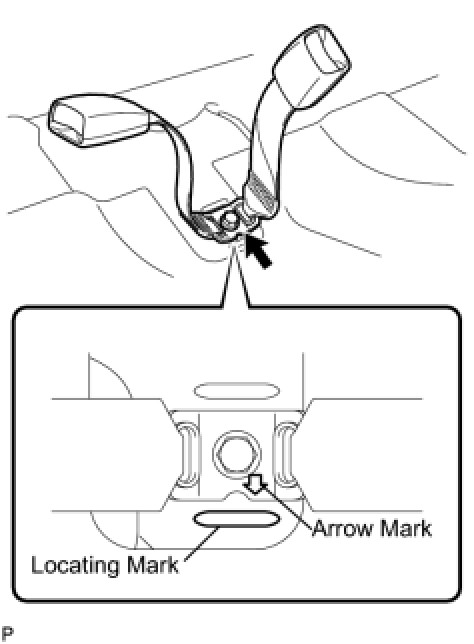

- Install the anchor plate with the arrow mark facing forward.
- Do not place the anchor plate over the locating mark area of the floor panel.

2. INSTALL REAR SEAT INNER BELT ASSEMBLY RH





(a) Install the rear seat inner belt with the bolt and washer.
Torque: 41 Nm (420 kgf-cm, 30 ft-lbf)





(b) Engage the 3 hooks and install the rear seat cushion cover pad.
NOTICE: Make sure that the 2 rear seat cushion lock hooks and the rear seat cushion frame are securely engaged.
