Seat Belt Reminder Lamp: Testing and Inspection

SEAT BELT: FRONT PASSENGER SEAT BELT WARNING LIGHT: INSPECTION

INSPECTION

1. INSPECT FRONT PASSENGER SEAT BELT WARNING LIGHT





(a) Check the operation.

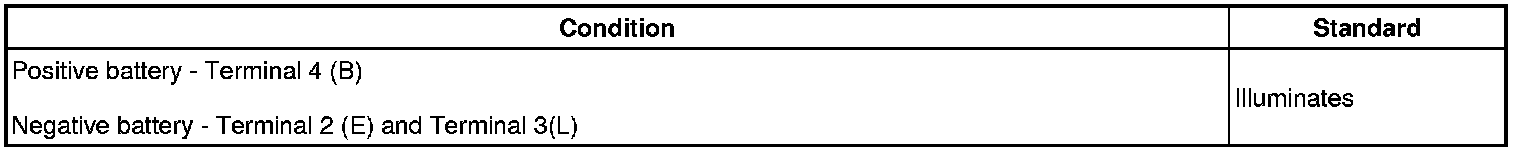

(1) Apply battery voltage to the terminals and check that the indicator illuminates.
OK:






If the result is not as specified, replace the hazard warning signal switch.
